Structure: a refined insert with concave shape and high concentricity
Material Science:
Plug in: high strength aluminum
Elastic ring: made of precision molded, extremely wear-resistant and heat-resistant plastic material
Speed: see table
Optional: it can be combined with different clamping collars, and others
Available: insert and two elastic rings

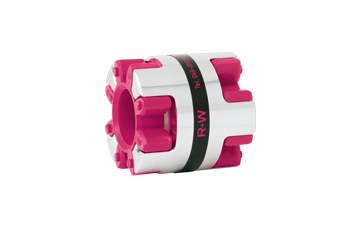

Ekz elastic coupling product features:
High lateral offset
Easy to install
Buffer damping
Electrical insulation
Zero back gap
Plug in
SIZE | 2 | 5 | 10 | 20 | 60 | 150 | 300 | 450 | 800 |
Type (Elastomer insert) | A/B/C | A/B/C | A/B/C | A/B/C | A/B/C | A/B/C | A/B/C | A/B/C | A/B/C |
Rated torque | 2/2.4/0.5 | 9/12/2 | 12.5/16/4 | 17/21/6 | 60/75/20 | 160/200/42 | 325/405/84 | 530/660/95 | 950/110/240 |
Overall length | 20 | 26 | 30 | 39 | 48 | 53 | 62 | 86 | 81 |
Inside diameter | 9 | 15 | 18 | 25 | 32 | 38 | 45 | 60 | 80 |
Moment of inertia | 0.0001 | 0.0005 | 0.002 | 0.008 | 0.03 | 0.05 | 0.1 | 0.6 | 1.1 |
