Structure: two coaxial split shaft sleeves with curved jaws and fixed nuts
Temperature range: depends on the quincunx elastic ring selected.
Torsional rigidity: quincunx elastic rings with different shore hardness are provided for the optimization of transmission system.
Fit clearance: shaft sleeve connection 0.01 - 0.05 mm.
Material Science:
Coupling sleeve: high strength aluminum
Elastic ring: TPU with wear resistance and thermal stability
Speed: see table for standard.
Technical parameters:
Rated torque: 60 - 1350 NM

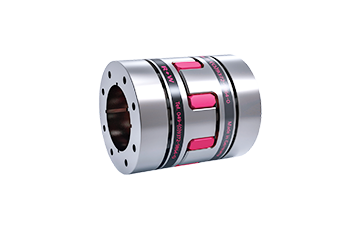

Product features of SP6 elastic coupling:
high-precision
High coaxiality
High clamping force
Symmetrically machined shaft sleeve
SIZE | 60 | 150 | 300 | 450 |
Rated torque | 60/75 | 160/200 | 325/405 | 530/660 |
Overall length | 64/78 | 80/90/100 | 114 | 110/126/140 |
Inside diameter range | 14-32 | 19-38 | 20-48 | 28-55 |
Mounting length | 23/30 | 30/35/40 | 45 | 42/50/57 |
