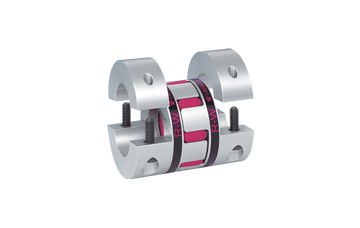

R + W elastomer couplings EKH

With split clamping shaft sleeve

Specification: 4-25000Nm

Radial mounting

Shafts available for pre alignment

Easy to install

DetailsParameterVideo

Structure:

The two clamping collar halves can move in the same direction

Separate collar and collar with two side screws on each side ISO4762

From the 4500 series, the collar has four side screws on each side

Temperature range: depends on the quincunx elastic ring selected.

Torsional rigidity: quincunx elastic rings with different shore hardness are provided for the optimization of transmission system.

Fit clearance: shaft sleeve connection 0.01 - 0.05 mm

Material Science:

Coupling sleeve: high strength aluminum for series 450, steel for Series 800 and GGG 40 for series 2500

Elastic ring: made of precision molded, extremely wear-resistant and heat-resistant plastic material

Elastic ring: made of precision molded, extremely wear-resistant and heat-resistant plastic material

Technical parameters: Rated torque: 4-25000 Nm

EKH type elastic coupling product features:

Radial assembly

Good concentricity

Buffer damping

Easy to install

Electrical insulation

Zero backlash elastic coupling

Plug in


SIZE 10 20 60 150 300 450 800
Rated torque 12.6/16/4 17/21/6 60/75/20 160/200/42 325/405/84 530/660/95 950/1100/240
Overall length 53 66 78 90 114 126 162
Mounting length 20 25 30 35 45 50 65
Inside diameter range 6-16 8-25 12-32 19-36 20-45 28-60 35-80
Moment of inertia per hub 0.005 0.02 0.06 0.1 0.4 1 9.5
