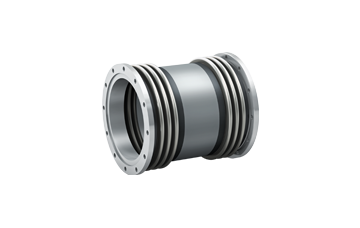

R+W Bellows Coupling BX1

with flange mounting

Specifications: 10000-100000Nm

Features:

Compact and minimalist design

High deviation correction ability

Self-contained support system (size 25 and up)


Material:

Bushing: Steel

Bellows: High elastic high performance stainless steel


design:

Flange at both ends

There are gaskets between the bellows

(Various lengths available)

(Model 10 without gasket)

Welded bellows-sleeve connection

DetailsParameter

structure:


Flanged hubs on both sides


Metal bellows with insert (10 series without insert)


The bellows and the collar are welded together


Temperature range: -40 to +300°C


Fitting clearance: bushing connection 0.03 - 0.08 mm


Longevity: Operated to specification, metal bellows couplings are durable and maintenance-free.


Material:


Bellows are made of highly elastic stainless steel


Collar material: steel


Special solutions: Other mating lengths, special materials and ATEX specifications are available on request in short order.


Product features of BX1 industrial coupling:


Rated torque 10 - 100 K Nm


Suitable for high torque


Compact structure and simple design


easy to install


Zero backlash, torsionally rigid


variable length


High offset value
