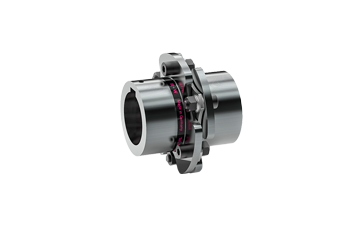

R+W Disc Pack Couplings LP1

With keyway installation

Specifications: 350-24000Nm

Features: High rigidity

           Single Diaphragm Design

           simple design

           Compensate for axial and angular deflection

           Wear-resistant and maintenance-free

Design: The high locking force nut and the shaft sleeve are assembled and connected, and the friction clamping

Fit the two precision coupling bushings to the diaphragm. The bushings are fixed by means of DIN 916 fixing nuts.

DetailsParameter

design:


Two high-precision manufacturing coupling sleeves are connected to the friction plate set by bushings and high-strength screws.


Axial fixing screws. Works well from -30˚ to +280˚C.


Material:


Friction disc set: high elasticity spring steel


Collar: high-strength steel


Product features of LP1 type diaphragm coupling:


very high torsional rigidity


Single universal structure design


Maintenance free + durable
