Current location: Home Product R+W R+W connecting shaft EZ2
  • R+W connecting shaft  EZ2
  • R+W connecting shaft  EZ2

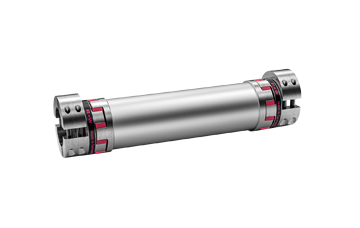

R+W connecting shaft EZ2

With split clamping shaft sleeve

Specifications: 9-25000Nm

The standard length can reach 4 meters

No intermediate support is required

The coupling is installed radially to ensure extremely simple installation and disassembly operation

DetailsParameterVideo

Structure:

Two coupling sleeves with concave claws and high concentricity.

The elastic ring can be selected in specification a or B.

The two coupling housings are closely connected, which optimizes the concentric operation of the aluminum sleeve.

Temperature range: depends on the quincunx elastic ring selected.

Torsional rigidity: quincunx elastic rings with different shore hardness are provided for the optimization of transmission system.

Fit clearance: shaft sleeve connection 0.01 - 0.05 mm.

Material Science:

Coupling sleeve: high strength aluminum for series 450, steel for Series 800 and GGG 40 for series 2500

Elastic ring: made of precision molded, extremely wear-resistant and heat-resistant plastic material

Spacer sleeve: high precision aluminum pipe, steel pipe and CFK pipe are optional parts.

Speed: Please specify the operating speed when querying and ordering in order to confirm its critical speed.

Technical parameters: Rated torque: 10-25000 Nm

Product features of EZ2 connecting shaft:

It can be assembled radially through a separate clamping collar

Standard length up to 4m

No intermediate support is required

Conical clamping collar is optional


SIZE 5 10 20 60 150 300 450 800 2500 4500 9500
Rated torque 9/12 12.5/16 17/21 60/75 160/200 325/405 530/660
950/1100 1950/2450 5000/6200 10000/12500
Overall length 75-3000 95-4000 130-4000 175-4000 200-4000 245-4000 280-4000 320-4000 460-4000 580-4000 710-4000
Fit length 13 20 25 40 47 55 65 79 88 110 140
Inside diameter  range 5-12.7 5-16 8-25 14-32 19-36 19-45 24-60 35-80 35-90 40-120 50-140
Inertia of tube per  meter 0.049 0.075 0.183 0.66 1.18 2.48 10.6 38 360 750 1800
