Current location: Home Product R+W R+W connecting shaft ZAL
  • R+W connecting shaft  ZAL
  • R+W connecting shaft  ZAL

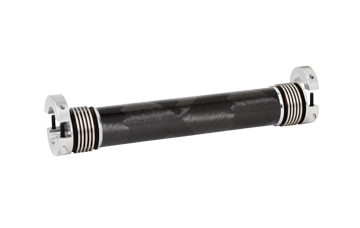

R+W connecting shaft ZAL

With split clamping shaft sleeve

Specifications: 10-800Nm

The coupling can be installed radially to ensure extremely simple installation and disassembly operation

No intermediate support is required

DetailsParameter

Design:

Two split clamping collars and two side screws. The spacer sleeve is placed inside the clamping collar.

Good operation from - 30 to + 100 ° C.

Material Science:

Bellows: made of high elastic stainless steel

Spacer sleeve: CFK

Collar: aluminum from series to 60 and steel from series 150.

Product features of ZAL connecting shaft:

Small moment of inertia

Used to bridge large wheelbase

Standard length up to 6 meters

No intermediate support is required

Suitable for high speed



SIZE 10 30 60 150 300 500 800
Rated torque 10 30 60 150 300 500 800
Overall length min. to max. 100-6000 130-6000 160-6000 180-6000 240-6000 250-6000 250-6000
Fit length 16 27 31 34.5 42 50 47
Inside diameter 5-20
10-28 12-32 19-42 30-60 35-60 40-72
