Current location: Home Product R+W R+W miniature bellows coupling FK1
  • R+W miniature bellows coupling FK1
  • R+W miniature bellows coupling FK1

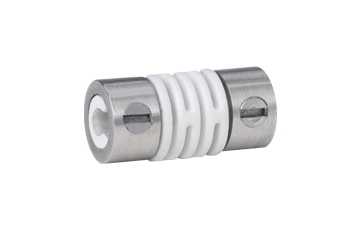

R+W miniature bellows coupling FK1

With radial fixing nut

Specification: 1Nm

Good balance

Sterilizable

DetailsParameterVideo

structure:


Use one side screw ISO4762


Clamping is achieved by radially arranged grooved threaded pins


Temperature range: -35 to +90° C


Clearance: absolutely no backlash coupling


Service life: Operate in accordance with technical specifications, the miniature bellows coupling can be durable and maintenance-free


Material:


Coupling material: polyamide


Clamping sleeve: stainless steel


Other apertures can be provided on request.


technical parameter:


Rated torque: 1 N cm


The speed can reach 20000 rpm.


The shaft diameter is 1.5 mm




SIZE
Rated torque 1
Standard bore 1.5/2
Moment of inertia 5.39
Approximate weight 0.47g
Torsional stiffness 23
Axial 0.2
Lateral 0.1
Angular 1.5
