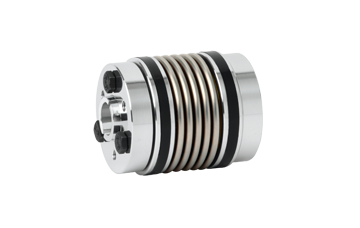

R+W miniature bellows coupling MKS

With tapered locking ring

Specification: 4.5-10Nm

Speed can reach: 12000rpm

Equipped with automatic coaxial clamping ring system to maintain excellent balance

Suitable for high-speed and high-precision applications


Structure: The collar is equipped with a tapered clamping ring and four screws ISO4017

Temperature range: -30 to +110° C

Clearance: shaft sleeve connection 0.01-0.025 mm

Service life: Operate in accordance with technical specifications, the miniature bellows coupling can be durable and maintenance-free


The bellows is made of highly elastic stainless steel

Conical collar and clamping ring are made of high-strength aluminum

technical parameter:

Rated torque: 4,5-10 Nm

The speed can reach 120,000 rpm.

Balance standard quality Q 2.5

Special solutions for miniature bellows couplings: such as other mating lengths, keyways, special materials and bellows can be provided on request in a short time.

Features of MKS type miniature bellows coupling:

Super high speed

With misalignment compensation function

Self-centering cone connector with strong adhesion

Suitable for highly dynamic applications

SIZE 45 100 150
Rated torque 4.5 1. 15
Overall length 42 48 53
Fit length 14 16 20
Inside diameter possible 6-10 8-14 10-19
Moment of inertia 65 226 561
