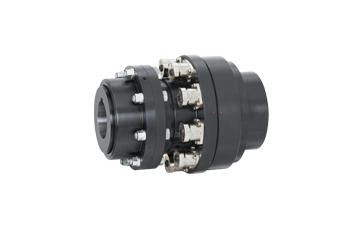

R+W Safety Coupling ST4

With easy keyway installation

Specifications: 200-25000Nm

Material:

Safety Coupling

   Hardened steel (surface oxidation treatment)

Gear coupling: wear-resistant high-alloy steel

(surface oxidation treatment)


design

Link connection with keyway (splines can be customized according to requirements), drum-shaped tooth coupling can be corrected, thimbles are evenly arranged outside the circumference, and can be calibrated within the specified range.

DetailsParameter

structure:


With keyway connection or spline connection.


Gear couplings can be used for misalignment compensation.


The switch section is distributed symmetrically around the periphery.


Adjustable within the adjustment range.


Temperature range: -30 to +120°C


Service life: Operating in accordance with technical specifications, safety couplings are durable and maintenance-free


Fitting clearance: bushing connection 0.02 - 0.07 mm


Material:


Safety parts: high-strength hardened steel (surface oxidation)


Gear coupling double-sided: extremely wear-resistant gear geometry made of high-alloy steel


Surface anti-corrosion (oxidation)


ST4 type safety coupling product features:


High power density


Torque from 1000 to 160000 Nm


Compensates for axial, lateral and angular displacement of the housing


Breakdown protection


low return force
