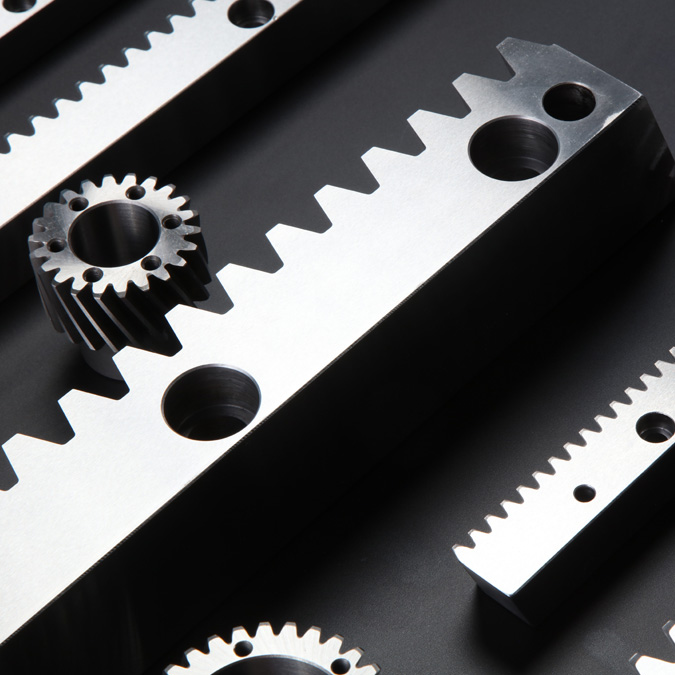

STRRONSE Racks for Milling
DetailsParameterVideo

STR Ronse brand originates from Germany. At first, it was a small factory focusing on the processing of machine tool parts. On the basis of inheriting and carrying forward its craftsman's technology, through continuous innovation, development and growth, it has today's str Ronse brand. As an enterprise specializing in rack and pinion design, R & D and production, STR Ronse sells high-quality top products all over the world. During its development, the company always adheres to the requirements of German production management, applies the world's top production equipment, continuously improves technology, and improves quality and efficiency.

As an expert in the field of transmission, STR Ronse can provide various types of racks with a stable monthly output of more than 20000. The rack accuracy covers din6s-din10, and the modulus includes 1.5-10. It has straight and helical teeth with various processes such as milling, grinding and quenching. Combined with various styles of gears and reducers, it can provide targeted application schemes suitable for various fields and working conditions.

Application fields of STR Ronse:

Din6s level: gantry machining center; Laser cutting machine.

Din6: wood, plastic, composite and aluminum processing machine tools; Laser cutting machine; Plasma cutting machine; Water cutting equipment; Elbow system; Truss; Ground rail.

The utility model has the advantages of infinite splicing, high-speed operation, large bearing capacity, stable operation, high transmission precision, high transmission efficiency, large transmission torque and long service life. It can be used for occasions with high speed, large stroke, precision requirements and accurate positioning.

The grinding rack has the advantages of high positioning accuracy, low operation noise, stable operation and long service life.

Application Industry: laser cutting machine, gantry machine tool, aluminum profile processing center, non-standard automatic machinery

The milling rack has the characteristics of low price and long service life

Application industry

Truss, ground rail, woodworking machinery, non-standard automation machinery

Steel                           1.0503 (C45)                                                                                                          Pressure Angle          20°
Workmanship             High Frequency Quenching50-55 HRC/Quenched Tepered 24-27 HRC             Quality                      8/9
Helix angle                  Right Rotation 19°31'42"


订货号  模数  理论长  L2 z b ha h f・0.6 a l h1 d1 d2 t a1 l1 d3 kg
1902.305 2 500 8.5 75 24 24 22 2 62.5 125 8 7 11 7 31.7 436.6 5.7 2.1
1902.301 2 1000 8.5 150 24 24 22 2 62.5 125 8 7 11 7 317 936.6 5.7 4.1
1903.305 3 500 10.3 50 29 29 26 2 62.5 125 9 10 15 9 35.0 430.0 7.7 2.9
1903.301 3 1000 10.3 100 29 29 26 2 62.5 125 9 10 15 9 35.0 930.0 7.7 5.9
1904.305 4 506.66 13.8 38 39 39 35 3 62.5 125 12 10 15 9 33.3 433.0 7.7 5.4
1904.301 4 1000 13.8 75 39 39 35 3 62.5 125 12 10 15 9 33.3 933.4 7.7 10.7
1905.305 5 500 17.4 30 49 39 34 3 62.5 125 12 14 20 13 37.5 425.0 11.7 6.5
1905.301 5 1000 17.4 60 49 39 34 3 62.5 125 12 14 20 13 37.5 925.0 11.7 13.0
1906.405 6 500 20.9 25 59 49 43 3 62.5 125 16 18 26 17 37.5 425.0 15.7 9.9
1906.401 6 1000 20.9 50 59 49 43 3 62.5 125 16 18 26 17 37.5 925.0 15.7 19.8


Steel                           1.0503 (C45)                                                                                                          Pressure Angle          20°
Workmanship             High Frequency Quenching50-55 HRC/Quenched Tepered 24-27 HRC             Quality                      8/9

订货号  模数  理论长 z b ha h f +0.5 a l
h1 d1 d2 t a1 l1 d3 kg
2002.405 2 502,65 80 24 24 22 2 62.8 125.66 8 7 11 7 31.3 440.1 5.7 2.1
2002.401 2 1005,30 160 24 24 22 2 62.8 125.66 8 7 11 7 313 942.7 5.7 4.2
2003.405 3 508,93 54 29 29 26 2 63.6 127.23 9 10 15 9 34.4 440.1 7.7 3
2003.401 3 1017,87 108 29 29 26 2 63.6 127.23 9 10 15 9 34.4 949.1 7.7 6
2004.405 4 502,65 40 39 39 35 3 62.8 125.66 12 10 15 9 37.5 427.7 7.7 5.25
2004.401 4 1005,30 80 39 39 35 3 62.8 125.66 12 10 15 9 37.5 930.3 7.7 10.5
2005.405 5 502,65 32 49 39 34 3 62.8 125.66 12 14 20 13 30.2 442.3 11.7 6.7
2005.401 5 1005,3 64 49 39 34 3 62.8 125.66 12 14 20 13 30.2 945 11.7 13.4
2006.405 6 508,93 27 59 49 43 3 63.6 127.23 16 18 26 17 31.4 446.1 15.7 10.4
2006.401 6 1017,87 54 59 49 43 3 63.6 127.23 16 18 26 17 31.4 955 15.7 20.2
