Grade 9 precision milling high frequency quenching rack (die 2-die 6)

Steel : 1.0503 [C45]

Pressure Angle: 20°

High Frequency Quenching: 50-55 HRC

Quality: 9

Helix angle: 19°31′42″


DetailsParameter

Hardened rack

Material: C45# steel;

High frequency quenching of tooth surface, hardness reaches 50-55HRC;

It is produced by a special machine imported from Germany, with high-precision grinding, and the overall pitch line error is less than or equal to 0.02mm;

German quality, quality is far better than domestic, cost-effective.


gear

Material: 20CrMnTi (gear steel)

After customizing according to customer drawings, carburizing and quenching, and finally high-precision grinding, the hardness reaches 58-63HRC German quality, excellent quality and cost-effective.


Applicable industries:

Automated robots (economical rack solution, reliable operation, long product life)


Gantry machining center (providing high-load, precision solutions)


Laser cutting machine (high acceleration, high operation, high precision)


Aluminum profiles, woodworking processing centers (provide cost-effective racks, optimize product quality)


Other fields (provide professional solutions for various linear drive equipment)

淬火齿条直齿参数淬火齿条斜齿参数

STRRONSE细节图

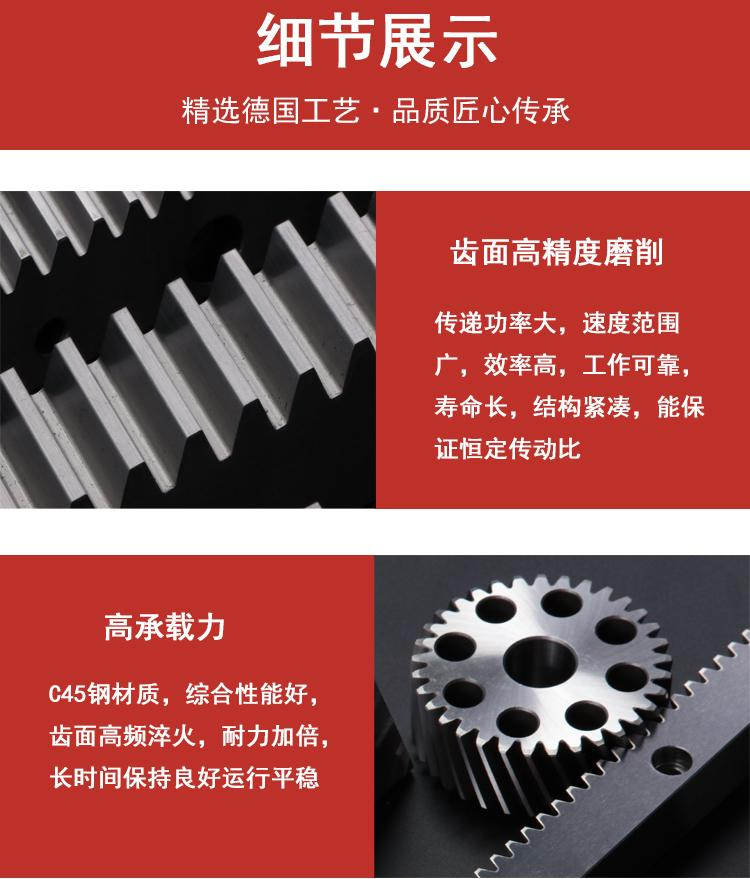

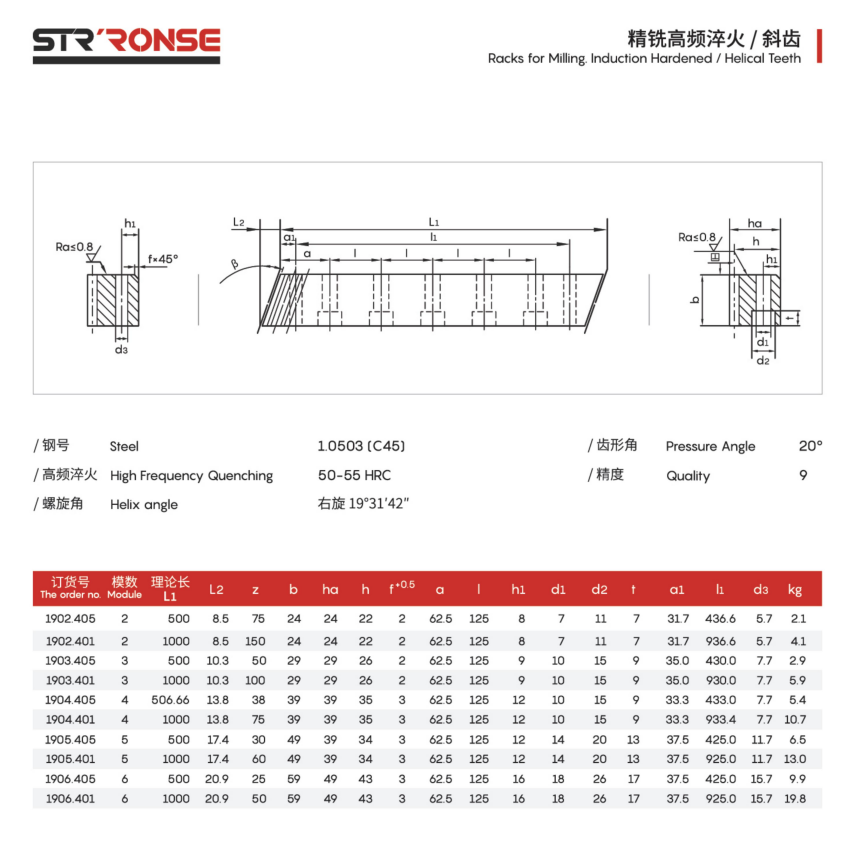

Quenching helical rack parameters
Order no. Module L1 L2 z b ha h f+0.5 a l h1 d1 d2 t a1 l1 d3 kg
1902.405 2 500 8.5 75 24 24 22 2 62.5 125 8 7 11 7 31.7 436.6 5.7 2.1
1902.401 2 1000 8.5 150 24 24 22 2 62.5 125 8 7 11 7 31.7 936.6 5.7 4.1
1903.405 3 500 10.3 50 29 29 26 2 62.5 125 9 10 15 9
35 430 7.7 2.9
1903.401 3 1000 10.3 100 29 29 26 2 62.5 125 9 10 15 9 35 930 7.7
5.9
1904.405 4 506.66 13.8 38 39 39 35 3 62.5 125 12 10 15 9 33.3 433 7.7 5.4
1904.401 4 1000 13.8 75 39 39 35 3 62.5 125 12 10 15 9 33.3 933.4 7.7 10.7
1905.405 5 500 17.4 30 49 39 34 3 62.5 125 12 14 20 13 37.5 425 11.7 6.5
1905.401 5 1000 17.4 60 49 39 34 3 62.5 125 12 14 20 13 37.5 925 11.7 13
1906.405 6 500 20.9 25 59 49 43 3 62.5 125 16 18 26 17 37.5 425 15.7 9.9
1906.401 6 1000 20.9 50 59 49 43 3 62.5 125 16 18 26 17 37.5 925 15.7 19.8

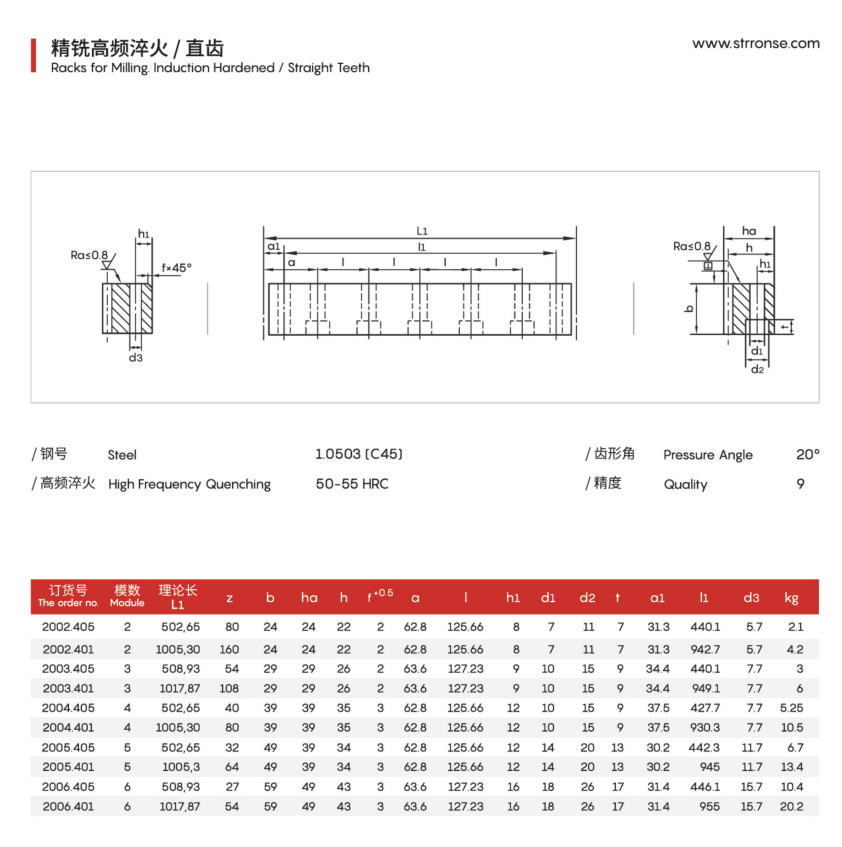

Quenched spur gear rack parameters
Order no. Module L1 z b ha h f+0.5 a l h1 d1 d2 t a1 l1 d3 kg
2002.405 2 502.65 80 24 24 22 2 62.8 125.66 8 7 11 7 31.3 440.1 5.7 2.1
2002.401 2 1005.3 160 24 24 22 2 62.8 125.66 8 7 11 7 31.3 942.7 5.7 4.2
2003.405 3 508.93 54 29 29 26 2 62.6 125.23 9 10 15 9
34.4 440.1 7.7 3
2003.401 3 1017.87 108 29 29 26 2 62.6 125.23 9 10 15 9 34.4 949.0 7.7
6
2004.405 4 502.65 40 39 39 35 3 62.8 125.66 12 10 15 9 37.5 427.7 7.7 5.25
2004.401 4 1005.3 80 39 39 35 3 62.8 125.66 12 10 15 9 37.5 930.3 7.7 10.5
2005.405 5 502.65 32 49 39 34 3 62.8 125.66 12 14 20 13 30.2 442.3 11.7 6.7
2005.401 5 1005.3 64 49 39 34 3 62.8 125.66 12 14 20 13 30.2 945 11.7 13.4
2006.405 6 508.93 27 59 49 43 3 62.6 125.23 16 18 26 17 31.4 446.1 15.7 10.4
2006.401 6 1017.87 54 59 49 43 3 62.6 125.23 16 18 26 17 31.4 955 15.7 20.2
