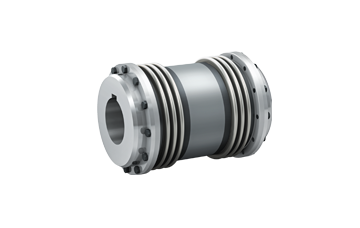

R+W Bellows Coupling BX4

With easy keyway installation

Specifications: 10000-100000Nm


Compact and minimalist design

High deviation correction ability

Self-contained support system (size 25 and up)


Bushing: Steel

Bellows: High elastic high performance stainless steel


Removable coupling bushings on both ends with keyway (keyway optional)

There are gaskets between the bellows

(Various lengths available)

(Model 10 without gasket)

Welded bellows-sleeve connection



Removable coupling sleeves on both sides

Including keyway

Metal bellows configuration insert (10 series without insert)

The bellows and the collar are welded together

Temperature range: -40 to +300°C

Fitting clearance: bushing connection 0.03 - 0.08 mm


Bellows are made of highly elastic stainless steel

Collar material: steel

Special solutions: Other mating lengths, special materials and ATEX specifications are available on request in short order.

Product features of BX4 industrial coupling:

Rated torque is 10 - 100 Nm

Suitable for high torque

Compact structure and simple design

easy to install

Torsional rigidity

variable length

High offset value
