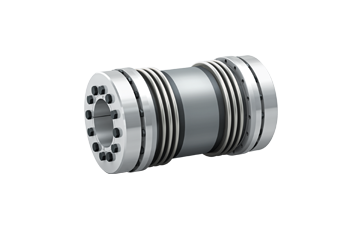

R+W Bellows Coupling BX6

Bushing with removable conical locking ring

Specifications: 10000-100000Nm


Compact and minimalist design

High deviation correction ability

Self-contained support system (size 25 and up)


Bushing: Steel

Bellows: High elastic high performance stainless steel


Removable coupling bushings on both ends with keyway (keyway optional)

There are gaskets between the bellows

(Various lengths available)

(Model 10 without gasket)

Welded bellows-sleeve connection



Flanged on both sides and removable grooved conical clamping collar.

Flange set screws are also available as compression screws for clamping tapered metal bellows with inserts (10 series without inserts).

The bellows and the collar are welded together.

Temperature range: -40 to +300°C (values may decrease at 300°C)

Fitting clearance: bushing connection 0.03 - 0.08 mm

Service life: Service life: Operating in accordance with technical specifications, metal bellows couplings are durable and maintenance-free.


Bellows are made of highly elastic stainless steel

Ring material is steel

Special solutions: Other mating lengths, special materials and ATEX specifications are available on request in short order.

Product features of BX6 industrial coupling:

Rated torque 10 - 100 K Nm

Zero Backlash Clamping Device

high clamping force

Suitable for high torque

Compact structure and simple design

easy to install

Zero backlash, torsionally rigid

variable length

High offset value
