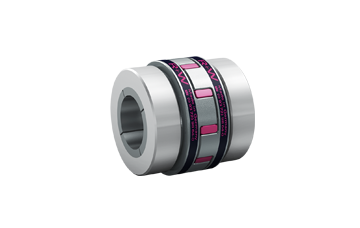

R+W Elastic Jaw Couplings EK6

with conical locking ring

Specifications: 1950-25000Nm

Features: High clamping force

           Axial installation

           High circumference accuracy

Material: Bushing GGG40

           Elastomer Abrasion Resistant Heat Stabilized TPU

design

Two coaxial, fully split bushings with jaws and clamping nut. 5 pressure-fit elastomers with zero backlash; standard model is insulated

DetailsParameter

Construction: Two coupling sleeves with concave jaws with high concentricity.


Temperature Range: Depends on the Torx elastic ring selected.


Torsional rigidity: Torx-shaped elastic rings with different Shore hardness are available for transmission optimization.


Fitting clearance: 0.01 - 0.05 mm for bushing connection.


Material:


Coupling sleeves: High-strength aluminum up to 450 series, steel from 800 series.


Elastomeric Ring: Made of precision moulded, extremely wear-resistant and heat-stable plastic material.


Speed: Standard see table.


Optional: External fastening screws


technical parameter:


Rated torque: 4 - 2.150 Nm


Speed up to 20,000 rpm


6EK type elastic coupling product features:


very good concentricity


high clamping force


Axial installation


easy to install


Buffer damping


electrical insulation


Zero backlash coupling


plug-in
