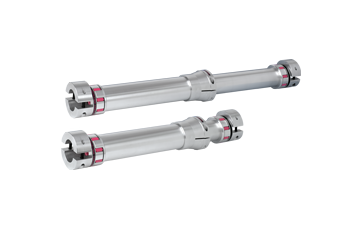

R+W connecting shaft EZV

With split clamping shaft sleeve

Adjustable length

Specification: 12.5-1200nm

The standard length can reach 4 meters

No intermediate support is required

The coupling is installed radially to ensure extremely simple installation and disassembly operation

DetailsParameterVideo

Structure:

Two coupling sleeves with concave claws and high concentricity.

The elastic ring can choose the specification pattern A or B. The two coupling housings are tightly connected by two high concentricity sleeves.

Loosen the clamping collar of the pipe and change the length within a predetermined range.

Temperature range: depends on the quincunx elastic ring selected.

Torsional rigidity: quincunx elastic rings with different shore hardness are provided for the optimization of transmission system.

Fit clearance: shaft sleeve connection 0.01 - 0.05 mm.

Material Science:

Coupling sleeve: high strength aluminum

Elastic ring: made of precision molded, extremely wear-resistant and heat-resistant plastic material

Spacer sleeve: high precision aluminum tube.

Speed: Please specify the operating speed when querying and ordering in order to confirm its critical speed.

Technical parameters: Rated torque: 10-25000 Nm

Product features of ezv connecting shaft:

The length can be changed steplessly

It can be assembled radially through a separate clamping collar

Standard length up to 4m

Intermediate supports are not required


SIZE 10 20 60 150 300 450
Rated torque 12.5/16 17/21 60/75 160/200 325/405 530/660
Outside diameter center hub 41.5 47 67 77 102 115
Fit length 20 25 40 47 55 65
Inside diameter 5-16 8-25 14-32 19-35 19-45 24-60
Inertia of tube  per meter 0.075 0.183 0.66 1.18 2.48 10.6
