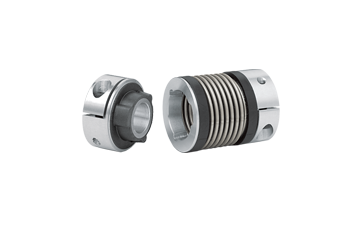

R+W miniature bellows coupling MK5

With clamping sleeve and conical press-in part

Specification: 0.5-10Nm

Can be installed radially and axially

Insulation

Easy to install and remove

DetailsParameterVideo

structure:


With clamping collar on one side with screw ISO4762


One side with clamping collar with screw ISO4762 and zero backlash, conical plug-in connector


Temperature range: -30 to +120° C


Clearance: shaft sleeve connection 0.01-0.05 mm


Service life: Operate in accordance with technical specifications, the miniature bellows coupling can be durable and maintenance-free


Material:


The bellows is made of highly elastic stainless steel


Clamping collar and tapered section of bellows side: aluminum


Conical section on the side of the collar: glass fiber reinforced plastic is sprayed on the aluminum collar


technical parameter:


Rated torque: 0.5-10 Nm


The speed can reach 10,000 rpm.


> 10000 revolutions per minute, when using dynamic balance


Shaft diameter is 3-20 mm


BK5 bellows coupling is suitable for higher torque


Special solutions for miniature bellows couplings: such as other mating lengths, keyways, special materials and bellows can be provided on request in a short time.


Features of MK5 type miniature bellows coupling:


Zero backlash, torsional rigidity


With misalignment compensation function


Easy to install and remove


Electrically insulated and insulated


Small moment of inertia


SIZE 5 15 20 45 100
Rated torque 0.5 1.5 2 4.5 10
Overall length (inserted) 27/30/33 34/39 37/43/46 49/57 55/65
Inside diameter possible 3-6.35 3-8 3-12.7 5-16 5-20
Moment of inertia 3.0/3.2/3.5 9.0/10 28/30/33 110/120 220/230
