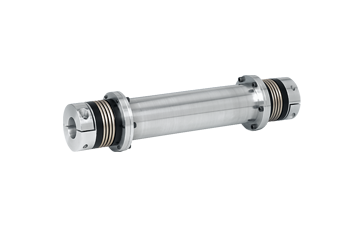

R+W connecting shaft ZA

With clamping shaft sleeve

Specifications: 10-800Nm

It can be installed and removed without affecting other machine components

The standard length can reach 6m

No intermediate support is required

DetailsParameter

Structure:

Clamping collar with balance and side screw ISO4762.

Removable spacer sleeves are used for installation and removal without moving the installed drive or driven equipment.

The spacer sleeve is placed inside the clamping collar.

Temperature range: - 30 to + 120 ° C

Clearance: it is connected by clamps with strong adhesion, and there is absolutely no back clearance.

Service life: operate according to the technical specifications, and the connecting shaft can be durable without maintenance.

Fit clearance: shaft sleeve connection 0.01 - 0.05 mm.

Material Science:

The bellows is made of high elastic stainless steel

Spacer sleeve: aluminum, steel from 300 series, optional: CFK construction

The clamping collar is aluminum to series 60 and steel from series 150

Technical parameters:

Rated torque: 10-800 Nm

The speed depends on the total length of type A, please contact R + W company.

ZA1 type connecting shaft product features:

It is not necessary to move the installed drive or driven equipment during installation and removal

Standard length up to 6 meters

No intermediate support is required

With dislocation compensation function

Zero backlash, torsional rigidity

Used to bridge large wheelbase

The spacer sleeve can be removed radially


SIZE 10 30 60 150 200 300 500 800
Rated torque 10 30 60 150 200 300 500 800
Overall length min. to max.  110-6000 140-6000 170-6000 190-6000
210-6000 250-6000 260-6000 260-6000
Fit length 16 27 31 35.5 40.5 43 50 48
Inside diameter 5-20 10-28 12-32 19-42 22-45 30-60 35-60 40-72
