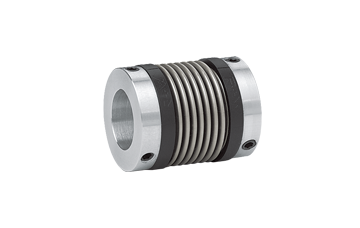

R+W miniature bellows coupling MK1

With radial fixing nut

Specification: 0.05-10Nm

Small size but large aperture

The complete disassembly slot does not require a plane structure on the shaft

DetailsParameter

Structure: The collar has a radial fastening screw DIN916 and a built-in detachable grooved tube.


Temperature range: -30 to +120° C


Clearance: shaft sleeve connection 0.01-0.08 mm


Service life: Operate in accordance with technical specifications, the miniature bellows coupling can be durable and maintenance-free


Material:


The bellows is made of highly elastic stainless steel, the 0.5 series of metal bellows is made of gunmetal


Collar aluminum


technical parameter:


Rated torque: 0.05-10 Nm


The speed can reach 20000 rpm.


> 20000 rpm, when using dynamic balance


The shaft diameter is 1-28 mm


Special solutions for miniature bellows couplings: such as other mating lengths, keyways, special materials and bellows can be provided on request in a short time.


Features of MK1 type miniature bellows coupling:


Zero backlash, torsional rigidity


With misalignment compensation function


The shaft will not be flattened by the built-in detachable grooved tube


Economical structure


Small moment of inertia


SIZE 0.5 1 5 10 15 20 45
100
Rated torque 0.05 0.1 0.5 1 1.5 2 4.5 10
Overall length 14 20 20/23/26 22/25/28 24/29 26/31/35 37/45 43/53
Inside diameter possible 1-3 1-5 3-9 3-9 3-12 3-16 6-22 6-28
Moment of inertia 0.1 0.4 1.1/1.2/1.3 1.3/1.8/2 4.7/5.5 15/18/20 65/70 180/220
