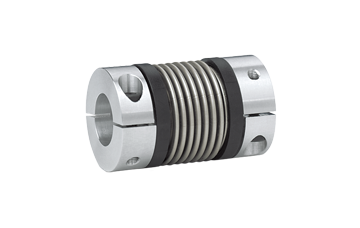

R+W miniature bellows coupling MK2

With clamping sleeve

Specification: 0.5-10Nm

Easy to install

High dynamics

Good balance, speed can reach 90000rpm

DetailsParameterVideo

Structure:

Standard configuration: with clamping collar and a side screw ISO4762.


Option (MKH ): Separate clamping collar, two collar halves can move in the same direction


Temperature range: -30 to +110° C


Clearance: shaft sleeve connection 0.01-0.05 mm


Service life: Operate in accordance with technical specifications, the miniature bellows coupling can be durable and maintenance-free


Material:


The bellows is made of highly elastic stainless steel


Ring material: aluminum


technical parameter:


Rated torque: 0.5-10 Nm


The speed can reach 10,000 rpm.


> 10000 revolutions per minute, when using dynamic balance


Shaft diameter is 3-24 mm


Special solutions for miniature bellows couplings: such as other mating lengths, keyways, special materials and bellows can be provided on request in a short time.


Features of MK2 type miniature bellows coupling:


Zero backlash, torsional rigidity


With misalignment compensation function


Strong adhesive connection by clamping collar


Suitable for highly dynamic applications


Small moment of inertia



SIZE 5 10 15 20 45 100
Rated torque 0.5 1 1.5 2 4.5 10
Overall length 25/28/31 27/30/33 30/35 35/40/44 46/54 50/60
Inside diameter possible 3-7 3-7 3-8 3-12.7 5-16
5-24
Moment of inertia 2.6/2.8/3 3/3.4/3.6 8.5/9.5 25/27/29 100/108 160/205
