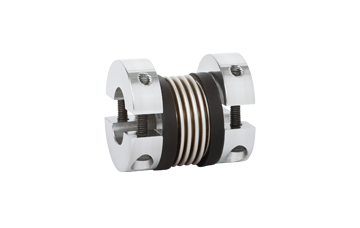

R+W miniature bellows coupling MKH

With separate clamping sleeve

Specification: 0.5-10Nm

Can be installed radially

Easy to install and remove

Can be used on pre-aligned shafts

DetailsParameterVideo

structure:


The two collar halves can move in the same direction


With separate clamping collar and collar with two side screws on each side ISO4762


Temperature range: -30 to +100° C


Clearance: It has a screw connection with strong adhesion, absolutely no backlash


Service life: Operate in accordance with technical specifications, the miniature bellows coupling can be durable and maintenance-free


Material: The bellows is made of highly elastic stainless steel


technical parameter:


Rated torque: 0.05-10 Nm


The speed can reach 10,000 rpm.


> Need to use fine dynamic balance at 10000 rpm


Special solutions for miniature bellows couplings: such as other mating lengths, keyways, special materials and bellows can be provided on request in a short time.


Features of MKH type miniature bellows coupling:


Can be assembled radially


Quick installation and removal


Light weight and low moment of inertia


No change after adjustment


SIZE 5 10 15 20 45 100
Rated torque 0.5 1 1.5 2 4.5 10
Overall length 25/28/31 27/30/33 30/35 35/40/44 46/54 50/60
Inside diameter possible 3-7 3-7 3-8 3-12.7 5-16
5-24
Moment of inertia 2.6/2.8/3 3/3.4/3.6 8.5/9.5 25/27/29 100/108 160/205
