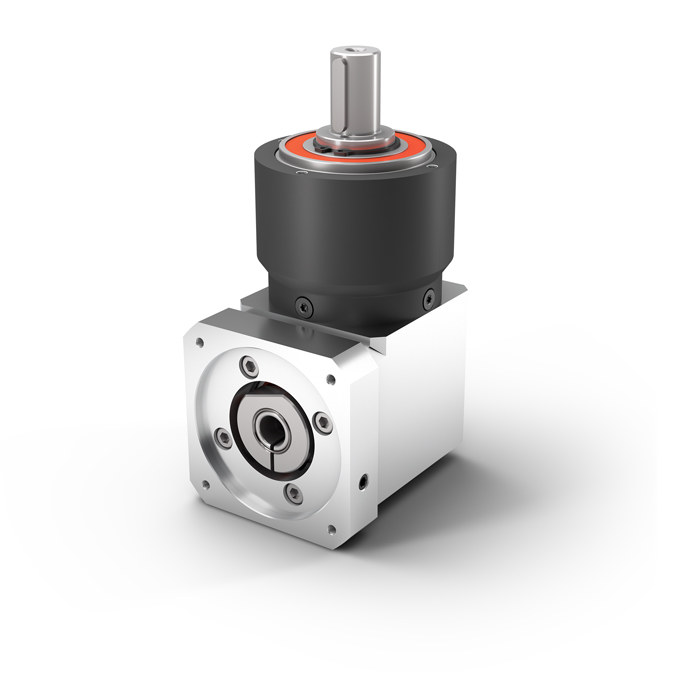

Right Angle Planetary Gearboxes with Output Shaft WPLPE

The economical right angle planetary gearbox for particularly high forces – flexible installation options and lifetime lubrication.

The WPLPE is the smart right angle solution from our Economy Line: Space-saving, and yet powerful at an attractive price. You install your drive elements directly on the output shaft and extract the maximum flexibility from your application.

DetailsParameter

WPLPE planetary reducer is a NEUGART series economical right-angle reducer, which is suitable for high-load working conditions and can be installed on multiple sides. The reducer is lubricated for life and maintenance-free. WPLPE planetary reducer is an intelligent right-angle solution for economical products, saving space, strong performance and reasonable price. The drive element can be mounted directly on the output shaft for excellent flexibility in practical applications.


Product description


WPLPE planetary gearbox is suitable for high radial and axial force conditions, because WPLPE is equipped with large-sized deep groove ball bearings, which can be directly installed without additional bearing components and without drive elements. WPLPE also has outstanding performance at a very reasonable price. This right angle planetary gearbox has strong performance and is suitable for a variety of applications. Even in a limited space, it can have excellent performance. The compact structure allows this gearbox to be installed on multiple sides. The optimized lubrication function can make this gearbox perform well.


WPLPE planetary gearbox has four specifications of 50, 70, 90 and 120, rated torque 5-195Nm, radial force 800-2500N, axial force 1000-4000N, return clearance 11-25arcmin, the service life of this gearbox is 20000 hours , The working environment temperature is -25-90 ℃, there are three kinds of lubrication methods: food grade, standard and low temperature, the torsional stiffness is between 0.5-38.5Nm, and the weight is 0.8-13.7kg, depending on the model selection.


Product advantages


Unbeatable price/performance ratio


Optimized output bearing


Great flexibility in installation


Lubricated for life and therefore maintenance-free


precise meshing




Optional


Various types of output shafts


Lubricate


Various types of drive flanges


Flexible connection of motors


Use


Pharmaceutical technology and pharmaceutical industry, agricultural product industry




Features


Multi-sided installation


save space


Reinforced deep groove ball bearings


Suitable for high load conditions






Gearbox characteristics WPLPE050 WPLPE070 WPLPE090 WPLE120 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 9,12,15,16,20,25,32,40,64,100 2
Service life h
20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 95/94
Min operating temperature/max operating temperature -25/90
Protection class IP54
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <21-<25 <16-<18 <13-<15 <11-<13
 Torsional stiffness Nm/arcmin 0.5-1.0 2.2-5.3 4.7-14.1 13.1-38.5
Gearbox weight kg 0.8-1.3 2.1-2.6 4.8-5.6 11.5-13.7
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 68 70 73 75
Max bending moment based on the gearbox input flange Nm 2 5 10.5 26

减速机参数 WPLPE050 WPLPE070 WPLPE090 WPLE120 P
传动比 3, 4, 5, 7, 8, 10 1
传动比 9,12,15,16,20,25,32,40,64,100 2
使用寿命
h
20.000
T2N×0.88时的使用寿命 h 30.000
满载时效率 % 95/94
最低工作温度/最高工作温度 -25/90
防护等级 IP54
标准润滑 润滑脂(终生润滑)
食品级润滑 润滑脂(终生润滑)
低温润滑 润滑脂(终生润滑)
安装位置 任意
标准回程间隙 arcmin <21-<25 <16-<18 <13-<15 <11-<13
抗扭刚度 Nm/arcmin 0.5-1.0 2.2-5.3 4.7-14.1 13.1-38.5
减速机重量 kg 0.8-1.3 2.1-2.6 4.8-5.6 11.5-13.7
标准的箱体表面 箱体:钢 - 热处理后氧化(黑色)
运行噪音 dB/(A) 68 70 73 75
基于减速机输入法兰的最大弯距
Nm 2 5 10.5 26

Nominal Output torque

WPLPE050 WPLPE070 WPLPE090 WPLPE120 I P
4.5 14 40 80 3 1
6 19 53 105 4
7.5 24 67 130 5
8.5 25 65 135 7
6 18 50 120 8
5 15 38 95 10
12 33 97 157 9 2
15 33 90 195 12
13 33 82 172 15
15 33 90 195 16
15 33 90 195 20
13
30 82 172 25
15 33 90 195 32
13 30 82 172 40
7.5 18 50 120 64
5 15
38 95 100


Output shaft loads

 WPLPE050  WPLPE070  WPLPE090  WPLPE120
Radial force for 20000 h N  800 1050 1900 2500
Axial force for 20000 h  N 1000 1350 2000 4000
Radial force for 30000 h N 700 900 1700 2150
Axial force for 30000 h  N 800 1000 1500 3000
Tilting moment for 20000 h  Nm 26 42 99 168
Tilting moment for 30000 h  Nm 22 36 89 144


Geometry

 WPLPE050  WPLPE070  WPLPE090  WPLPE120 P
Shaft diameter output  mm 12 16 22 32
Centering diameter output   mm 35 52 68 90
Housing diameter   mm 50 70 90 120
Min. total lenght    mm 115.5 152.5 197.5 265 1
mm 128 165.5 215.5 292.5 2
Shaft lenght output  mm 24.5 36 46 68
