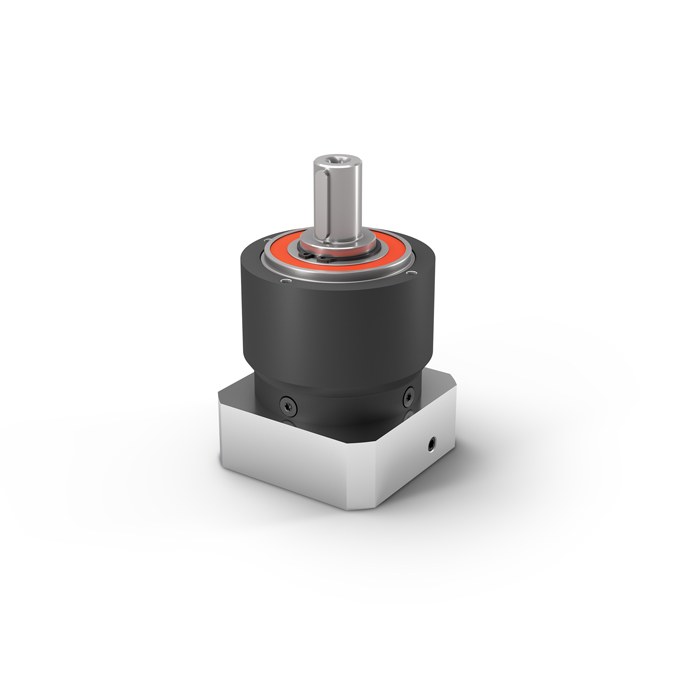

Planetary Gearbox with Output Shaft PLPE

The cost effective planetary gearbox with the best torque-low heat performance.

Our PLPE unites the best properties of the Economy Line with a performance advantage. It is cost effective, yet powerful, and generates minimal heat. The optimized output bearing has been designed for high radial and axial forces.

DetailsParameter

PLPE planetary gearbox is a gearbox that integrates the relevant characteristics of economical products. The performance of PLPE gearbox has also been greatly improved in terms of economical advantages. While this gearbox is economical and practical, the heat generated is high. It is very rare, and the optimized output bearing of this gearbox can withstand high radial and axial forces, and can complete work tasks safely and stably in some difficult jobs.



Product description

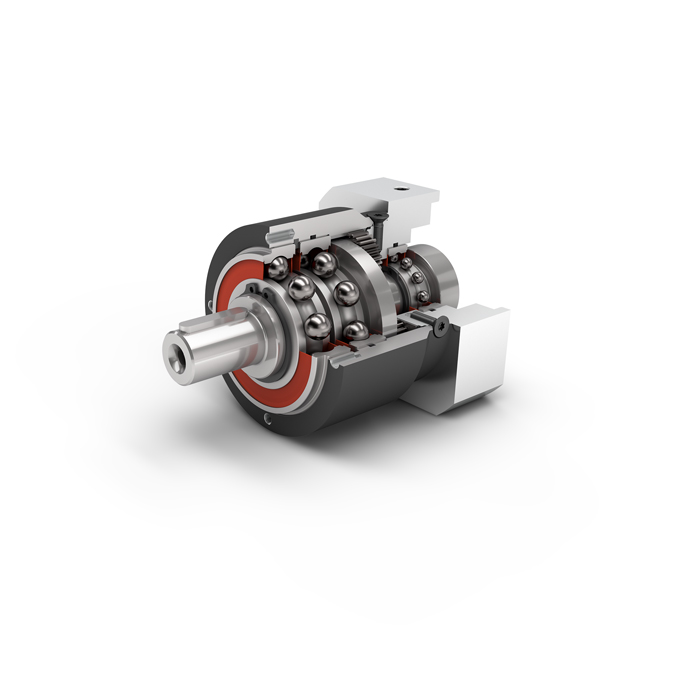

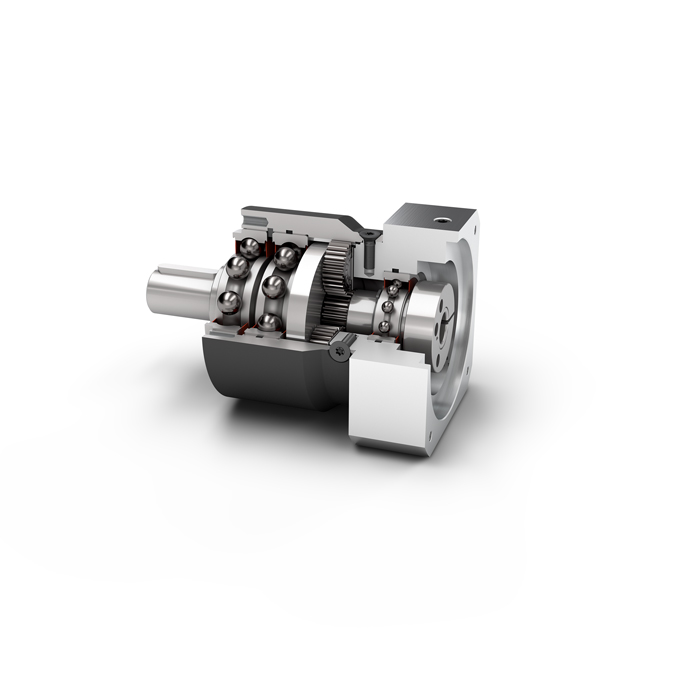

Optimized output bearing of PLPE gearbox. This larger deep groove ball bearing allows PLPE to have high radial and axial forces. No additional bearing assemblies are required, the drive element of this gearbox can be directly mounted on the output shaft, and the structure is simple and very flexible.


Low heat generation at maximum speed. The low friction loss bearing design and lubricated function of this gearbox make PLPE economical and durable. And because of the low heat generation advantage of this gearbox, it can exert its own characteristics even in a high-standard production environment.


This gearbox adopts shaft output and can choose different shaft specifications; two stages of gear planet carrier are available; a total of 17 speed ratio options from 3-100; PLPE structure sizes are 50, 70, 90, 120, 155 Five different specifications; rated torque 5-460Nm, radial force can withstand 800-5200N, axial force can withstand 1000-7000N, return clearance 6-19arcmin (can be customized according to demand). The torsional stiffness of PLPE is 0.7-73Nm, and the weight range is between 0.6-22.5kg. The specific output depends on the product model.

PLPE gearboxs are used in industries such as food, printing and cutting machines or where high radial and axial forces are required.



Product advantages


Strong performance, high radial and axial forces, economical, low heat generation




Optional


Various types of output shafts


lubricating


Optimized tensioning system


Various types of drive flanges



Use

Food industry, pharmaceutical technology and pharmaceutical industry, printing industry


Features

Cost-effective

Low heat at high speed

Optimized output bearing

Can be installed anywhere

Lifetime lubrication maintenance free

Precise engagement



PLPE planetary gearbox speed ratio model

PLPE50-3、PLPE50-4、PLPE50-5、PLPE50-7、PLPE50-8、PLPE50-10、PLPE50-9、PLPE50-12、PLPE50-15、PLPE50-16、PLPE50-20、PLPE50-25、PLPE50-32、PLPE50-40、PLPE50-64、PLPE50-100
PLPE70-3、PLPE70-4、PLPE70-5、PLPE70-7、PLPE70-8、PLPE70-10、PLPE70-9、PLPE70-12、PLPE70-15、PLPE70-16、PLPE70-20、PLPE70-25、PLPE70-32、PLPE70-40、PLPE70-64、PLPE70-100
PLPE90-3、PLPE90-4、PLPE90-5、PLPE90-7、PLPE90-8、PLPE90-10、PLPE90-9、PLPE90-12、PLPE90-15、PLPE90-16、PLPE90-20、PLPE90-25、PLPE90-32、PLPE90-40、PLPE90-64、PLPE90-100
PLPE120-3、PLPE120-4、PLPE120-5、PLPE120-7、PLPE120-8、PLPE120-10、PLPE120-9、PLPE120-12、PLPE120-15、PLPE120-16、PLPE120-20、PLPE120-25、PLPE120-32、PLPE120-40、PLPE120-64、PLPE120-100
PLPE155-4、PLPE155-5、PLPE155-10、PLPE155-16、PLPE155-20、PLPE155-25、PLPE155-40、PLPE155-50、PLPE155-100

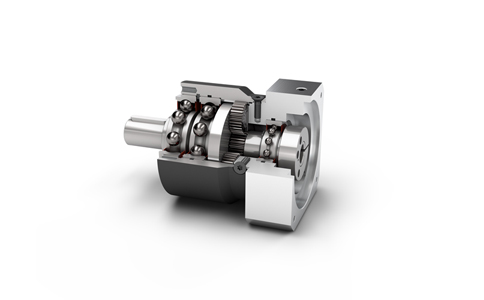

PLPE internal structure dimension drawing:PLPE内部结构图.png




Gearbox characteristics PLPE050 PLPE070 PLPE090 PLPE120 PLPE155 P


Reduer
3, 4, 5, 7, 8, 10 1
9, 12, 15, 16, 20, 25, 32, 40, 50,64,100 2
Service life h 30.000

Efficiency at full load

%
98
97
-25/90
Protection class IP54
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Lnstallation location Any
Standard return clearance arcmin <15-<19 <10-<12 <7-<9 <7-<9 <6-<9
Torsional stiffness Nm/arcmin 0.7-1.1 3.5-5.8 9.7-16.1 24.5-43.5 54.5-73.0
Reducer weight kg 0.6-1.1 1.4-1.9 3.2-4.0 7.4-9.6 16.8-22.5
Standard case surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 58 58 60 65 70
Max bending moment based on the gearbox input flange Nm 3 8 16 40 180


Nominal output torque

PLPE050 PLPE070 PLPE090 PLPE120 PLPE155 I P
11 28 85 115 - 3 1
15 33 90 155 460 4
13 30 82 172 445 5
8.5 25 65 135 - 7
6 18 50 120 - 8
5 15 38 95 210 10
12 33 97 157 - 9 2
15 33 90 195 - 12
13 33 82 172 - 15
15 33 90 195 460 16
15 33 90 195 460 20
13 30 82 172 445 25
15 33 90 195 - 32
13 30 82 172 460 40
- - - - 445 50
7.5 18 50 120 - 64
5 15 38
95 210 100


Output shaft loads

PLPE050 PLPE070 PLPE090 PLPE120 PLPE155
Radial force for 20000 h N  800            1050   1900 2500  5200
Axial force for 20000 h N 1000  1350 2000 4000 7000
Radial force for 30000 h N 700 900 1700 2150 4600
Axial force for 30000 h N 800 1000 1500 3000 6000
Tilting moment for 20000 h Nm 26 42 99 168 497
Tilting moment for 30000 h Nm 22 36 89 144 440

Geometry

 PLPE050  PLPE070  PLPE090  PLPE120  PLPE155 P
Shaft diameter output mm 12 16 22 32 40
Centering diameter output mm 35
52 68 90 120
Housing diameter mm 50 70 90 120 155
Min. total lenght mm 94 111 147 192 275.5 1
mm 106.5 124 165 219.5 320 2
Shaft lenght output  mm 24.5 36 46 68 97
