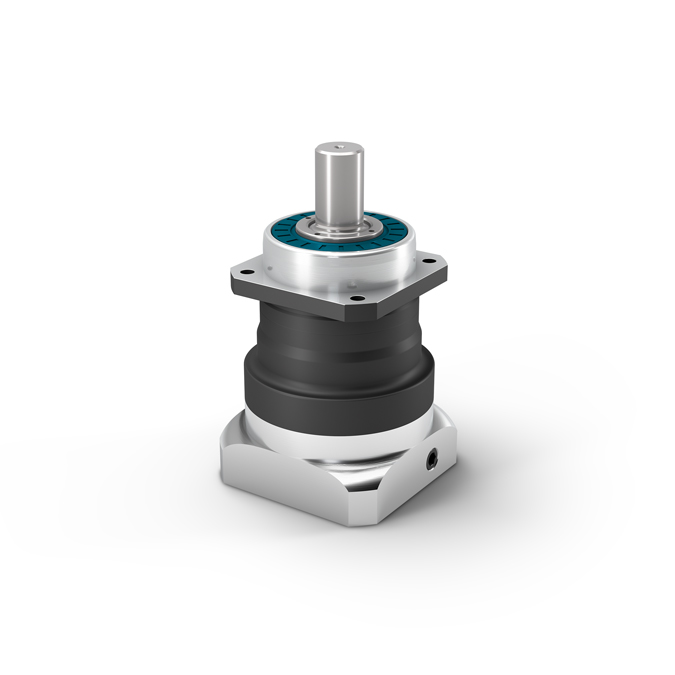

Planetary Gearboxes with Output Shaft PLN

The perfectly sealed straight-toothed planetary gearbox delivers the maximum performance without ever losing the required stiffness.

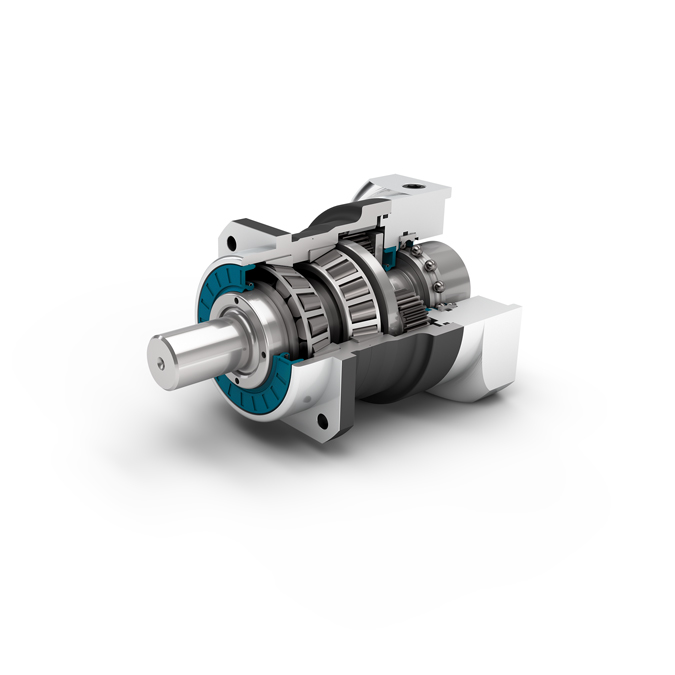

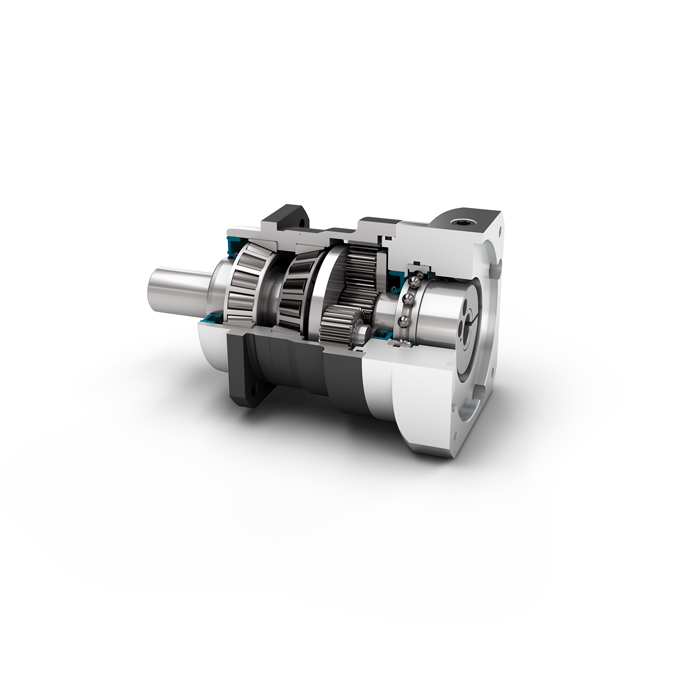

Our straight-toothed precision planetary gearbox has been designed for the highest performance and torque. The prestressed tapered roller bearings in the PLN and the seal we have developed safeguard the optimal performance even against dust and water jets.

DetailsParameter

The PLN planetary gearbox is a highly hermetically sealed spur gear planetary gearbox that provides high efficiency without losing the necessary rigidity. This spur gear planetary gearbox is suitable for applications where high performance and torque are required. PLN is equipped with preloaded tapered roller bearings and our self-developed seals, which can effectively ensure the accuracy and tightness of the gearbox, prevent dust and splash water from entering the machine during operation, and can provide good performance.


Product description


PLN planetary gearbox dust and splashing water will not affect the operation of this gearbox. Due to the fact that this gear unit is equipped with a radial shaft seal, it can also exert its excellent quality in harsh environmental conditions. The protection level of the PLN gearbox is IP65. With the design of the intelligent structure, the PLN is well protected during work. With this preloaded tapered roller bearing, the PLN is able to maintain its rigidity well and this gearbox is a reliable solution. The PLN is equipped with spur gears for high performance applications, and due to the intelligent design of this gearbox, the power density of this gearbox is better than that of conventional gearboxs.


The return clearance of the PLN gearbox is small, the normal model is 1-5 arc minutes, and the gearbox less than 1 arc minute can be customized. It is suitable for installation in any position, the input flange can be adapted to special motors, and the output shaft has a variety of styles, including spline, pin hole, pinion, and flange output. A square output flange is used, with an extra-long centering ring on the output end. The service life is 20000h, the working temperature is in the range of -25-90℃, and there are three ways to choose from standard, food grade and low temperature. The torsional stiffness of the gearbox is in the range of 3.4-224Nm, and the specific product data varies according to the selected model.


The detailed 3D model, the model parameters are clear and clear, and the technology provides model selection assistance.



Product advantages


Excellent rigidity under high loads


good sealing


Spur gears for high torque


Can be installed anywhere


Individually adjustable drive flange on the motor


Lubricated for life and therefore maintenance-free


Optional


return clearance


Various types of output shafts


Lubricate


Optimized tensioning system


Various types of drive flanges


installed pinion




Use


Lithium battery industry, coating machine industry, laser cutting, packaging and printing




Features


High sealing, high torque, high performance, high load




Gearbox characteristics PLN070 PLN090 PLN115 PLN142 PLN190 P
I 3, 4, 5, 7, 8,10 1
I 12,15,16,20,25,32,40,64,100 2
Service life h
20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 98/95
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication 润滑油(终生润滑)
Food grade lubrication 润滑油(终生润滑)
Low temperature lubrication 润滑油(终生润滑)
 Installation position 任意
Standard backlash arcmin <3-<5
Reduced backlash arcmin <2 <1 <1 <1 <1
Torsional stiffness Nm/arcmin 3.4-5.0 9.0-12.4 22.0-29.5 61.0-78.0 155.0-224.0
Gearbox weight kg 2.0-2.6 3.3-4.3 6.5-9.0 16.0-22.0 33.4-49.6
Standard surface 箱体:钢 - 热处理后氧化(黑色)
Running noise dB/(A) 60 62 65 70 74
Max bending moment based on the gearbox input flange Nm 18 38 80 180 300


Nominal Output torque

PLN070 PLN090 PLN115 PLN142 PLN190 I P
45 100 230 450 1000 3 1
60 140 300 600 1300 4
65 140 260 750 1600 5
45 90 180 530 1300 7
40 80 150 450 1000 8
27 60 125 305 630 10
68 110 250 780 1500 12 2
68 110 250 780 1500 15
77 150 300 1000 1800 16
77 150 300 1000 1800 20
65 140 260 900 1800 25
77 150 300 1000 1800 32
65 140 260 900 1800 40
40 80 150 450 1000 64
27 60 125 305 630 100


Output shaft loads

PLN070 PLN090 PLN115 PLN142 PLN190
Radial force for 20000 h  3200
5500 6000 12500 21000
Axial force for 20000 h 4400 6400 8000 15000 21000
Radial force for 30000 h  3200 4800 5400 11400 18000
Axial force for 30000 h 3900 5700 7000 13200 18500
Tilting moment for 20000 h 191 383 488 1420 2535
Tilting moment for 30000 h 191 335 439 1295 2173


Geometry

PLN070 PLN090 PLN115 PLN142 PLN190 P
Shaft diameter output 16 22 32 40 55
Centering diameter output 60 70 90 130 160
Flange cross section output 70
80 110 142 190
Min. total lenght 137.5 159.5 201 276 310.5 1
166.5 191.5 241 335 382.5 2
Shaft lenght output 48 56 88 110 112
