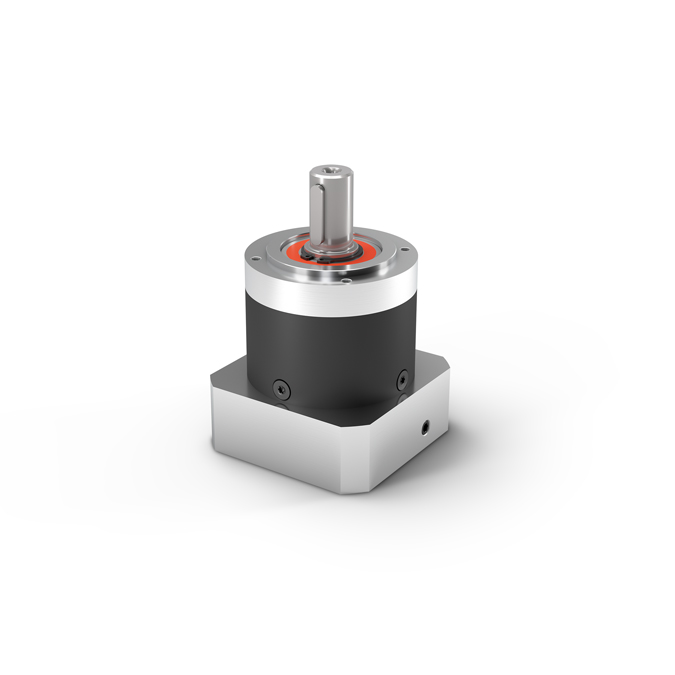

Planetary Gearbox with Output Shaft PLE

The highest dynamics in multiple axis systems

Unrivaled price-performance ratio

Low heat generation at highest speeds

For any mounting position

Lifetime lubrication for maintenance-free operation

Precise gearing


The PLE is perhaps the basis of our success. It is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, fair price.
DetailsParameter

PLE gearbox model:

PLE40, PLE60, PLE80, PLE120, PLE160

PLE gearbox speed ratio

First gear ratio: 3, 4, 5, 7, 8, 10

Secondary speed ratio: 9, 12, 15, 16, 20, 25, 32, 40, 64

Three-stage speed ratio: 60, 80, 100, 120, 160, 200, 256, 320, 512


PLE planetary gearbox is a basic gearbox among NEUGART gearboxs, and it is also widely used. PLE has the characteristics of light weight and strong performance. And because of the low friction loss bearing design of this gearbox, it is very suitable for operation in high standard production conditions. Compared with other gearboxs, high efficiency can also be achieved at high speeds.


This gearbox has five sizes of PLE40, PLE60, PLE80, PLE120 and PLE160 to choose from, and the NEUGART series can also choose a small size gearbox. With 3 sets of planetary gear carriers, there are 24 speed ratios from 3-512 to choose from, which are suitable for different types of servo motors and stepper motors.

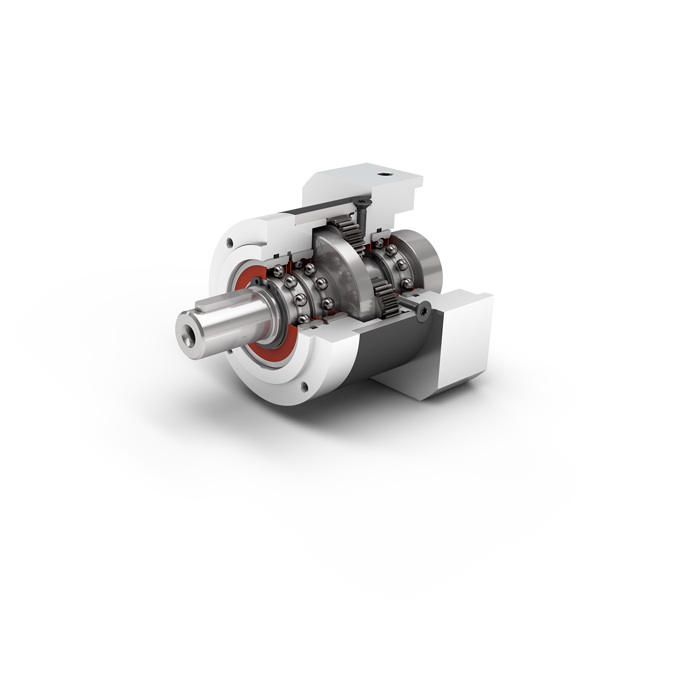

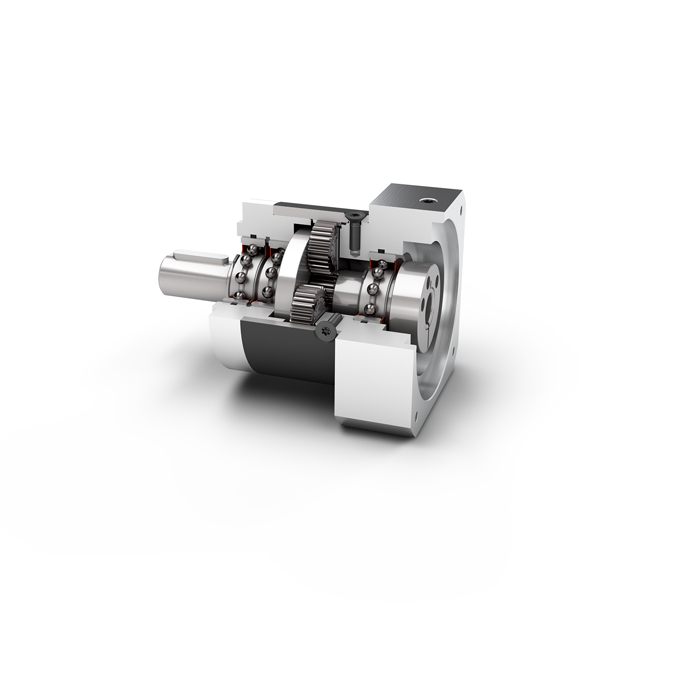

PLE is an economical gearbox with a circular output flange and an output shaft. The specifications of the output shaft can be selected (see the NEUGART selection catalog for details). It is a coaxial gearbox with a compact structure, high bearing capacity, Long life, low noise and other advantages, the planetary gear carrier adopts spur gears, low friction deep groove ball bearings, etc. The components are relatively simple and have far-reaching significance for the NEUGART gearbox series.


This one can work between -25°C and 90°C; IP54 protection grade; standard lubrication, low temperature lubrication and food grade lubrication, a total of three lubrication methods can be selected; because of its compact structure, any installation method can be used, Easy to install; the torsional stiffness is within the range of 0.7-75Nm, and the specific model has different data to choose from; the weight range of the gearbox is at least 0.3-23.7Kg, which can be selected. The series data such as the weight load of this gearbox are recorded in detail in the selection sample, and the specific model selection is determined according to the motor parameters and load conditions.


PLE planetary gearboxs are widely used in automation, machine tools, food, laser cutting, truss, packaging machinery and other industries. Shenzhen Weidong Automation provides a full range of NEUGART products, professional technology provides all-round technical support, NCP selection software, quick quotation, etc.



Gearbox characteristics PLE040 PLE060 PLE080 PLE120 PLE160 P
service life h 30.000
Efficiency at full load % 98/97/92
Min operating temperature/max operating temperature -25/90
Protection class IP54
Standard lubrication Grease (lifetime lubrication)
food grade lubrication Grease (lifetime lubrication)
low temperature lubrication Grease (lifetime lubrication)
Installation location Any


Standard return clearance


arcmin
<15 <10 <7 <7 <6 1
<19 <12 <9 <9 <9 2
<22 <15 <11 <11 - 3


Torsional stiffness


Nm/arcmin
0.7-1.0 2.1-2.8 7.2-10.0 15.5-21.0 57.5-69.0 1
0.8-1.0 2.3-2.8 7.9-10.4 17.5-22.0 61.0-75.0 2
0.8-1.0 2.3-2.8 7.9-10.5 17.5-22.0 - 3


Reducer weight
kg 0.3-0.4 0.9 2.1 5.6-5.7 17.4-17.6 1
kg 0.4-0.5 1.1 2.6 7.3-7.5 23.5-23.7 2
kg 0.5 1.3 3.1 9.2-9.4 - 3
Standard case surface Housing: Steel - heat-treated and post-oxidized(black)
running noise dB/(A) 58 58 60 65 70
Max bending moment based on the gearbox input flange Nm 3 8 16 40 140

Nominal output torque

PLE040 PLE060 PLE080 PLE120 PLE160 I P
11 28 85 115 400 3 1
15 38 115 155 450 4
14 40 110 195 450 5
8.5 25 65 135 - 7
6 18 50 120 450 8
5 15 38 95 - 10
16.5 44 130 210 - 9 2
20 44 120 260 800 12
18
44 110 230 700 15
20 44 120 260 800 16
20 44 120 260 800 20
18 40 110 230 700 25
20 44 120 260 800 32
18 40 110 230 700 40
7.5 18 50 120 450 64
20 44 110 260 - 60 3
20 44 120 260 - 80
20 44 120 260 - 100
18 44 110 230 - 120
20 44 120 260 - 160
18 40 110 230 - 200
20 44 120 260 - 256
18 40 110 230 - 320
7.5 18 50 120 - 512


Output shaft loads

PLE040 PLE060 PLE080 PLE120 PLE160
Radial force for 20000 h  200
400 750 1750 5000
Axial force for 20000 h 200 500 1000 2500 7000
Radial force for 30000 h  160 340 650 1500 4200
Axial force for 30000 h 160 450 900 2100 6000
Tilting moment for 20000 h 5 14 31 101 474
Tilting moment for 30000 h 4 12 27 86 398


Geometry

PLE040 PLE060 PLE080 PLE120 PLE160
Pitch circle diameter output 34 52 70 100 145
Shaft diameter output 10 14 20 25 40
Centering diameter output 26 40 60 80 130
Housing length 40 60 80 115 160
Min. total lenght 88.5 106 133.5 176.5 255.5 1
106.5 118.5 150.5 204 305 2
114 131 168 231.5 - 3
Shaft lenght output 26 35 40 55 87
