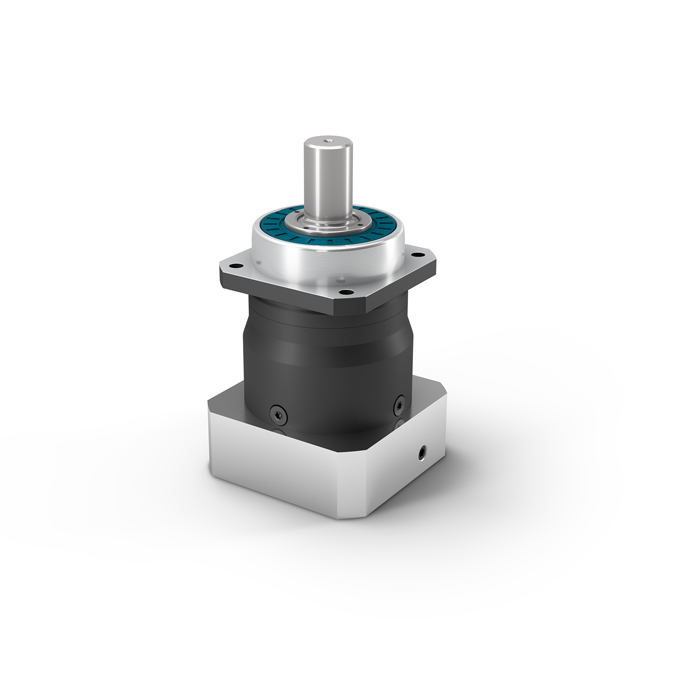

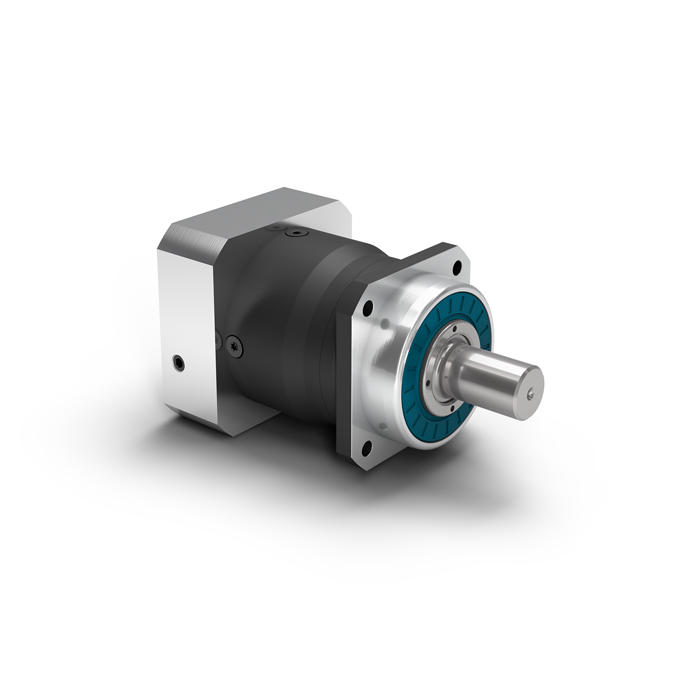

Planetary Gearbox with Output Shaft PLHE

This is progress: In this planetary gearbox, precision and cost effectiveness meet.

The PLHE is the world’s first combination of economy and precision planetary gearboxes. The prestressed tapered roller bearings of our planetary gearboxes safeguard great stiffness even under the highest loads. The seal we have developed provides the perfect protection against dust and water jets.

DetailsParameterVideo

PLHE planetary gearbox has been greatly improved in accuracy and economy through the optimization of economical gearbox, and it is also the first gearbox that integrates economical and high-precision. Self-developed seals can effectively prevent splash water and dust from entering the machine, and can be protected with the help of intelligent structure.


This gearbox can also play the characteristics of this gearbox in a more demanding environment. The preloaded tapered roller bearing ensures that the gearbox has this high rigidity. Even if the running direction is frequently switched, the output bearing can maintain with zero backlash. Good characteristics are maintained even under continuous load.



Product description


NEUGART's planetary gear units with output shaft are suitable for a wide variety of drive solutions.


The output shaft can be selected in different forms, for example, as a transmission shaft with feather keys to reliably transmit power in a mutually meshing manner.

The Feather Key is a universal connecting element found in numerous drive assemblies, creating a fast and reliable connection between planetary gearboxes with output shafts and your application

Planetary gearboxes with smooth output shafts are ideal for friction-fit connection to the coupling. So you also get excellent torque transfer when running in reverse.

The planetary gearbox with output shaft can also be connected to your drive system via a multi-tooth shaft. With this meshing output shaft according to DIN 5480, you can install other drive components, such as pinions, very simply by intermeshing with the internal teeth.


The drive flange of the planetary gearbox can be individually adapted to the motor. The compact unit of planetary gear unit with output shaft and servo motor increases flexibility.


Due to the low moment of inertia of the output shaft, planetary gearboxes with output shafts are the ideal solution for many dynamic applications.


Due to the wide variety of planetary gearboxes with output shafts, we offer you maximum freedom in choosing the right product for your specific application.


PLHE has an extra-long centering ring, which can be installed in any position, the input flange can be adapted to special motors; the output shaft has a variety of styles, and the gearbox with pinion can be customized; optimized moment of inertia locking The system adopts high-precision gears, which can maintain a high meshing accuracy. The torsional stiffness of the gearbox is between 2.6-27.5Nm, and the weight can be selected from 1.5-8.8kg. The specific gearbox data selection sample will have complete data, and it can also be displayed through NCP when adapting the motor.




Product advantages

High precision, economical, high rigidity, high load, completely sealed



Optional

Various types of output shafts

lubricating

Optimized tensioning system

Various types of drive flanges

installed pinion



Use

Packaging equipment, printing industry, agricultural product industry


Features

Rigidity under high loads

high sealing

Can be installed anywhere

Lifetime lubrication maintenance free

precise meshing


PLHE gearbox model speed ratio

PLHE060-3、PLHE060-4、PLHE060-5、PLHE060-7、PLHE060-8、PLHE060-10、PLHE060-9、PLHE060-12、PLHE060-15、PLHE060-16、PLHE060-20、PLHE060-25、PLHE060-32、PLHE060-40、PLHE060-64、PLHE060-100
PLHE080-3、PLHE080-4、PLHE080-5、PLHE080-7、PLHE080-8、PLHE080-10、PLHE080-9、PLHE080-12、PLHE080-15、PLHE080-16、PLHE080-20、PLHE080-25、PLHE080-32、PLHE080-40、PLHE080-64、PLHE080-100
PLHE120-3、PLHE120-4、PLHE120-5、PLHE120-7、PLHE120-8、PLHE120-10、PLHE120-9、PLHE120-12、PLHE120-15、PLHE120-16、PLHE120-20、PLHE120-25、PLHE120-32、PLHE120-40、PLHE120-64、PLHE120-100

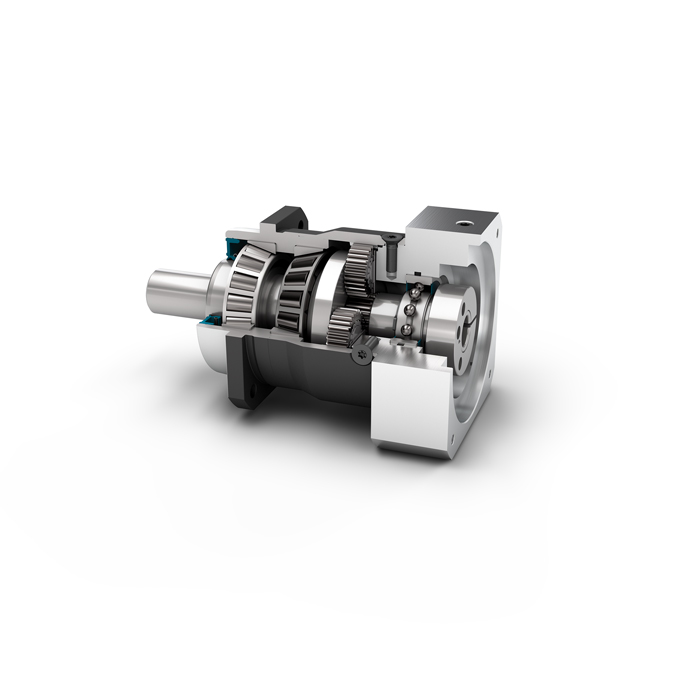

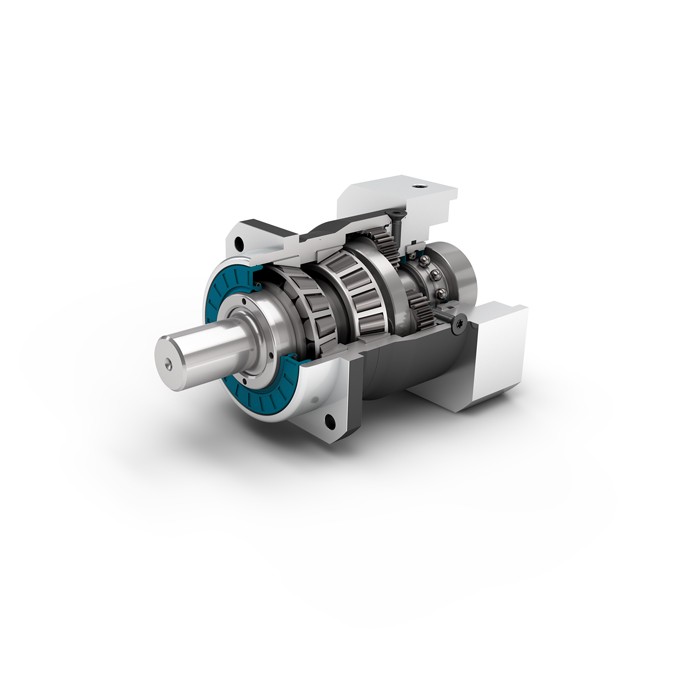

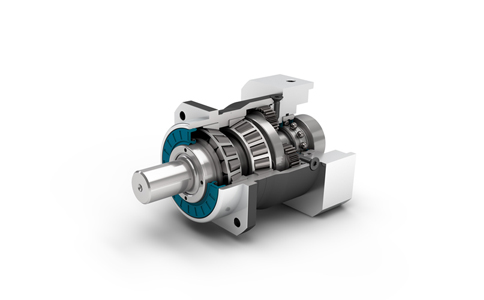

PLHE60 gearbox dimension drawingPLHE行星减速机内部结构图.png

PLHE planetary gearbox drawing download:
PLHE selection reference diagram




Gearbox characteristics PLHE060 PLHE080 PLHE120 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 9, 12, 15, 16, 20, 25, 32, 40,64,100 2
Service life h 30.000
Efficiency at full load % 97/96
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Lnstallation location Any
Standard return clearance arcmin <10-<12 <7-<9 <7-<9
Torsional stiffness Nm/arcmin 2.6-4.6 7.3-12.3 16.7-27.5
Reducer weight kg 1.5-1.8 3.0-4.0 6.8-8.8
Standard case surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 58 60 65
Max bending moment based on the gearbox input flange Nm 8 16 40

Nominal Output torque

PLHE060 PLHE080 PLHE120 I P
28 85 115 3 1
38 115 155 4
40 110 195 5
25 65 135 7
18 50 120 8
15 38 95 10
44 130 210 9 2
44 120 260 12
44 110 230 15
44 120 260 16
44 120 260 20
40 110 230 25
44 120 260 32
40 110 230 40
18 50 120 64
15 38 95 100


Output shaft loads

PLHE060 PLHE080  PLHE120
Radial force for 20000 h N 3200 5500 6000
Axial force for 20000 h N 4400 6400 8000
Radial force for 30000 h N 3200 4800 5400
Axial force for 30000 h  N 3900 5700 7000
Tilting moment for 20000 h Nm 191 383 488
Tilting moment for 30000 h Nm 191 335 439


geometry

PLHE060 PLHE080  PLHE120 P
Shaft diameter output mm 16 22 32
Centering diameter output mm 60 70 90
Housing diameter mm 60 80 115
Flange cross section output  mm 70 80 110
Min. total lenght mm 127 159 199.5 1
139.5 177 227 2
Shaft lenght output mm 48 56 88
