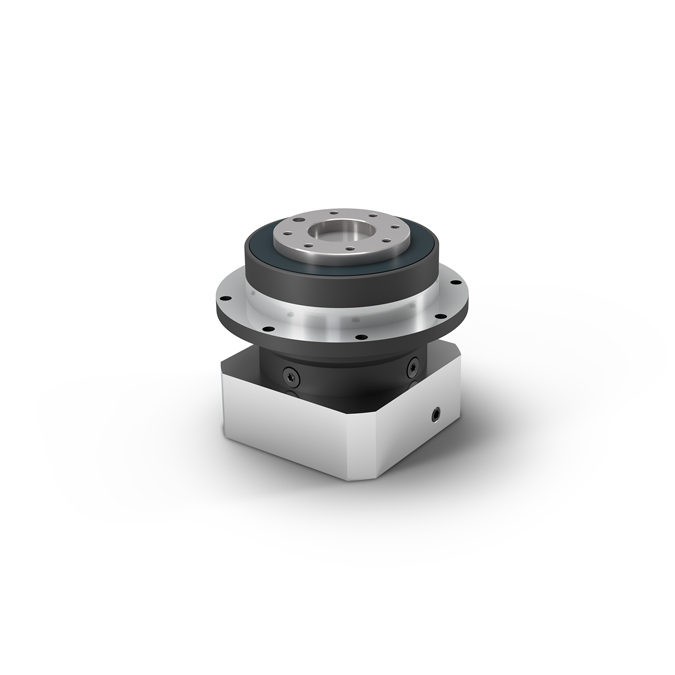

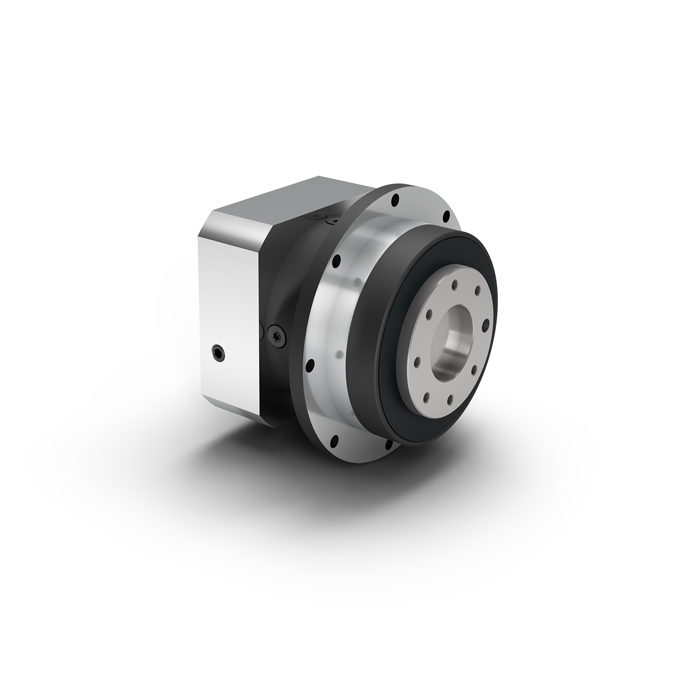

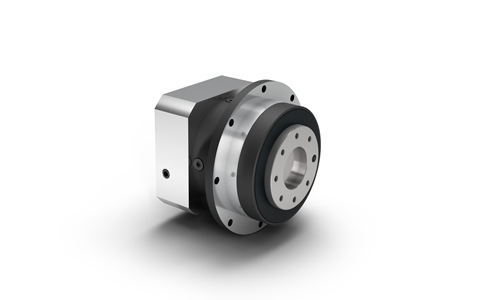

Flange Gearbox – Planetary Gearbox with Output Flange PLFE

The shortest planetary gearbox with the highest torsional stiffness and flange output shaft.

There’s no such thing as too short: The PLFE is our planetary gearbox with compact flange output shaft. You save more than a third of the space and benefit from a torsional stiffness that is five times higher than conventional products. Due to its standardized flange interface, it is especially easy to install. The integrated dowel hole provides additional secureness during fitting.

DetailsParameterVideo

PLFE gearbox is a short structure planetary gearbox, this gearbox has high torsional rigidity, this compact flange output gearbox saves space, using a round flange output shaft, with standard Flange output interface, the installation of this gearbox is also very simple, and the built-in positioning pin hole also provides additional protection for the installation of the gearbox.


 Product description


Due to the larger diameter of the flanged output shaft, the torsional stiffness of the PLFE is higher than that of the output shaft with a flat key. In this way, the drive scheme of this gearbox can be optimized.

PLFE is much shorter than similar gearboxs. Depending on the specification, the installation length of this gearbox can be shortened by up to 35% compared to other gearboxs.


PLFE gearbox is NEUGART series economical flange output shaft gearbox, with round extra large output flange, flange output shaft according to ISO 9409 standard, using low friction deep groove ball bearing, planetary gear carrier using spur gear. This gearbox has a service life of up to 30,000 hours, depending on the application and load; the operating temperature is between -25-90°C, the torsional stiffness is between 5.5-88Nm, and the weight of the gearbox is in the range of 1.1 -8.5kg. The specific data can be provided according to the specific model during the selection.


PLFE has a wide range of applications in food, packaging, lithium battery and other industries. Because of its compact structure, this flange output gearbox is more suitable for use in some inconvenient installation environments, and the installation is simple and convenient.


Product advantages


short structure


High torsional stiffness


Flange output shaft



Optional


lubricating


Optimized tightening system


Various types of drive flanges


Flexible connection of motors




Use


Packaging equipment, machine tools, agricultural products industry

Features


Small and exquisite


High torsional stiffness for precision drive solutions


Fast and safe installation


Can be installed anywhere


precise meshing

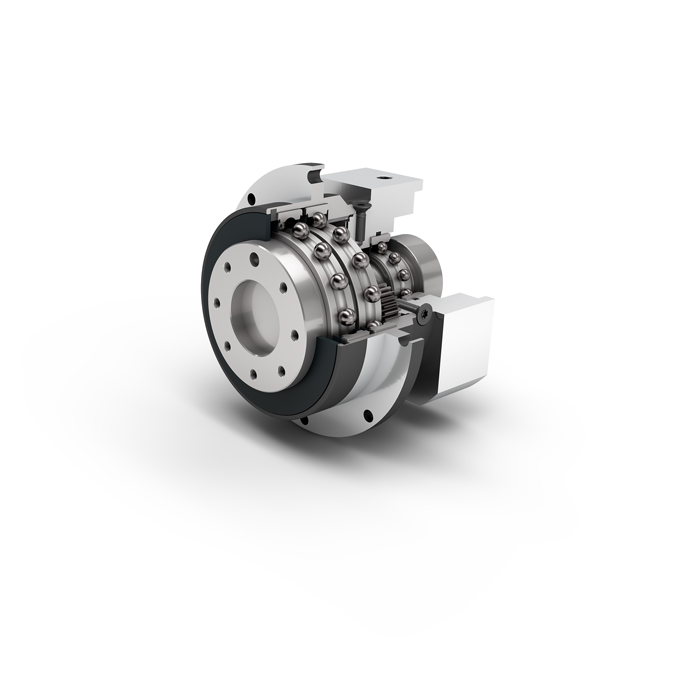

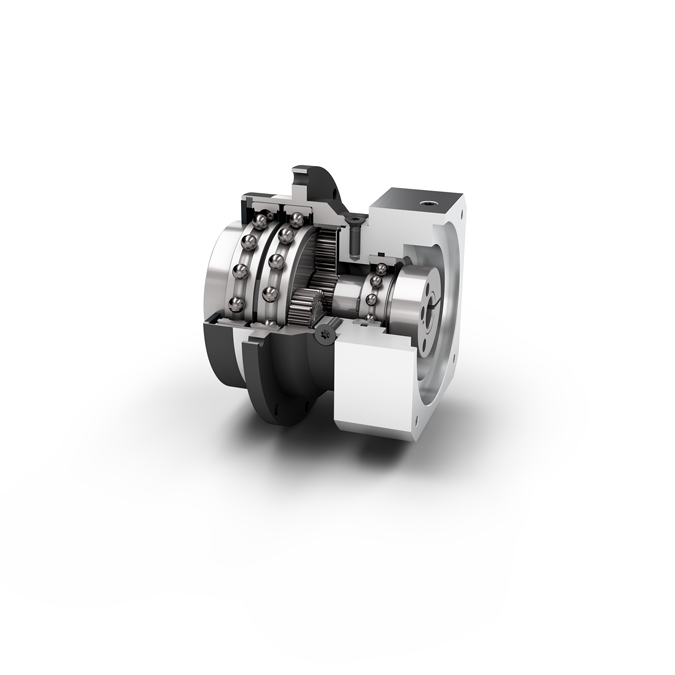

The internal structure and dimensions of the PLFE flange gearbox



Gearbox characteristics PLFE064 PLFE090 PLFE110 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 9, 12, 15, 16, 20, 25, 32, 40,64,100 2
Service life h 30.000
Efficiency at full load % 98/97
Min operating temperature/max operating temperature -25/90
Protection class IP54
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <10-<12 <7-<9 <7-<9
Torsional stiffness Nm/arcmin 5.5-11.9 16.3-39.5 36.0-88.0
Gearbox weight kg 1.1-1.4 3.0-3.7 6.4-8.5
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 58 60 65
Max bending moment based on the gearbox input flange Nm 8 16 40

Nominal Output torque

PLFE064 PLFE090 PLFE110 I P
28 85 115 3 1
38 115 155 4
40 110 195 5
25 65 135 7
18 50 120 8
15 38 95 10
44 130 210 9 2
44 120 260 12
44 110 230 15
44 120 260 16
44 120 260 20
40 110 230 25
40 120 260 32
40 110
230 40
18 50 120 64
15 38 95 100


Output shaft loads

  PLFE064  PLFE090 PLFE110
Radial force for 20000 h N 550 1400 2400
Axial force for 20000 h N 1200 3000 3300
Radial force for 30000 h N 500
1200 2100
Axial force for 30000 h N 1200 3000 3300
Tilting moment for 20000 h  Nm 12 46 109
Tilting moment for 30000 h Nm 11 40 96



Geometry

PLFE064  PLFE090    PLFE110  P
Pitch circle diameter output shaft mm 31.5  50 63
Centering diameter output flange mm 64 90 110
Flange diameter output mm 86 118 145
Min. total lenght     mm 69 98.5 125.5 1
mm 81.5 116 152.5 2
Output  flange length mm 19.5 30 29
