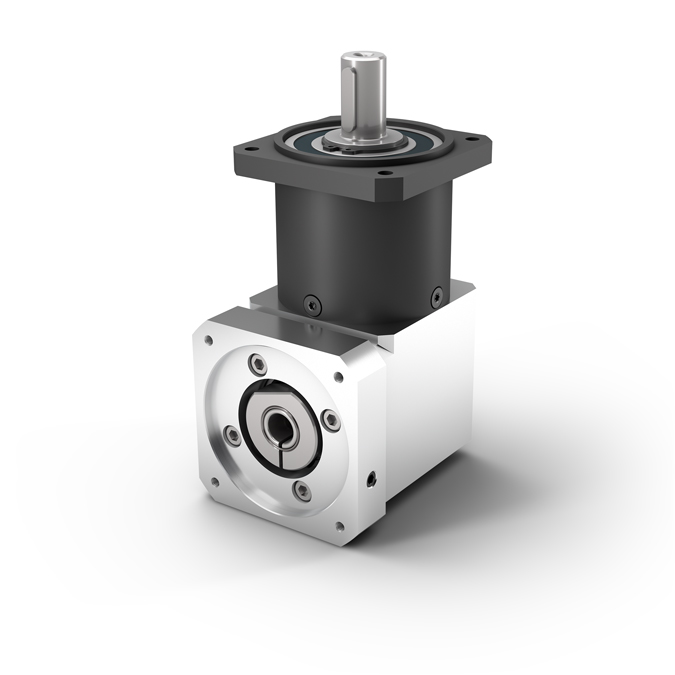

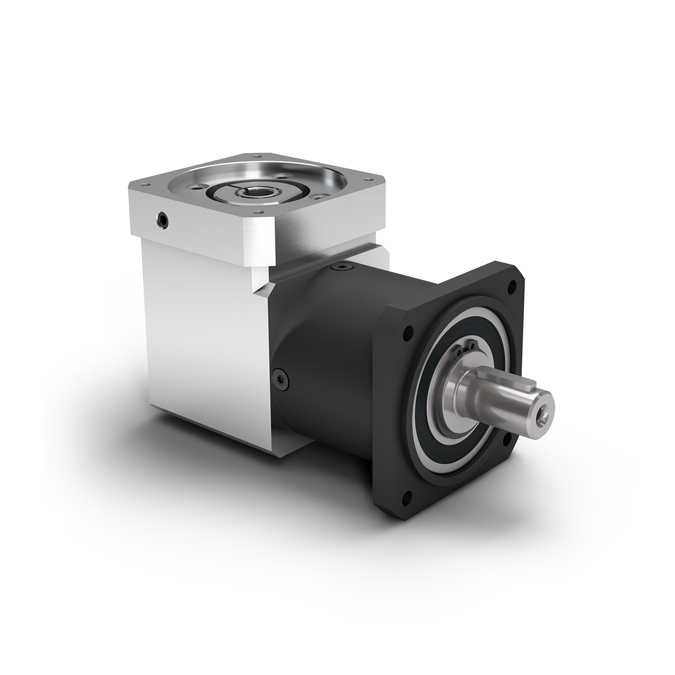

Right Angle Planetary Gearboxes with Output Shaft WPLQE

The right angle planetary gearbox with universal output flange – flexible installation options and for high forces.

The WPLQE is our right angle gearbox with the square output flange. This makes it particularly easy to install for a wide range of applications, and its large tapered roller bearings also make it ideal for high radial and axial forces.

DetailsParameterVideo

WPLQE right angle planetary gearbox with square through hole output flange can be installed on multiple sides, suitable for working conditions with high bearing capacity. Right angle gearbox with square output flange. Therefore, it is very convenient to install, can be used on multiple sides, and can withstand high radial and axial forces due to the large-sized deep groove ball bearings.



Product description


WPLQE has three sizes of 60, 90, and 120 to choose from. WPLQE can be directly bolted to the machine without other intermediate flanges. The output flange with through holes allows for easier maintenance and simple installation. On the WPLQE, the output element can be mounted directly on the output shaft, saving time and money without compromising performance. Due to the large size deep groove ball bearing on the output shaft, this right angle gearbox can withstand high radial and axial forces. The flexibility of WPLQE is also very high due to the variety of installation forms.


The rated torque of this gearbox is 14-260Nm, the radial force is 900-2950N, the axial force is 1000-2500N, and the return clearance is 11-21arcmin. Economical right-angle planetary gearbox, reinforced deep groove ball bearing, various transmission ratios, service life of 20,000 hours, working temperature range between -25-90 ℃, three lubricating temperatures of food, standard and low temperature can be selected, torsional stiffness 1.9 -19Nm, the weight is in the range of 1.8-14.2kg, and the specific parameters of the product vary according to the selection.

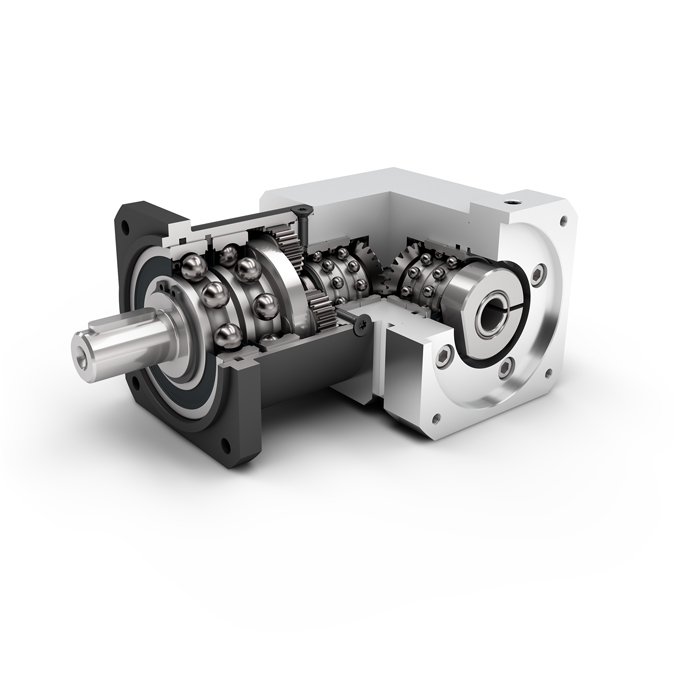

The angle type planetary gearbox with output shaft combines the advantages of the compact angle type gearbox and the traditional planetary gearbox. This flexibly mounted corner gear unit offers you an intelligent drive solution in a compact mechanical design. The advantage of the output shaft of the angular planetary gearbox lies in the reliable transmission of torque and speed at right angles. Here you can choose between a meshing connection with an output shaft with feather keys for added safety or a smooth output shaft providing a friction drive. Our angular planetary gear units with output shaft can be combined very easily with numerous drive elements such as pulleys, couplings or linear shafts. Angular planetary gearbox drive flange with output shaft for individual adaptation to your motor



Product advantages


Flexible installation


High load


Equipped with larger deep groove ball bearings




optional


Various types of output shafts


lubricating


Various types of drive flanges


Flexible connection of motors


Use


Packaging industry, food industry, printing industry




Features


Optimized output bearing


Square output flange


Great flexibility in installation


Extremely high dynamics in multi-axis systems


Lubricated for life and therefore maintenance-free


precise meshing






Gearbox characteristics WPLQE060 WPLQE080 WPLQE120 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 9,12,15,16,20,25,32,40,64 2
Reduer 60,80,100,120,160,200,256,320,512 3
Service life h 20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 95/94/88
Min operating temperature/max operating temperature -25/90
Protection class IP54
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <16-<21 <13-<17 <11-<15
Torsional stiffness Nm/arcmin 1.9-4.1 4.4-13.3 9.3-19.0
Gearbox weight kg 1.8-2.2 4.2-5.5 10.4-14.2
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 70 73 77
Max bending moment based on the gearbox input flange Nm 5 10.5 26



Nominal Output torque

WPLQE060 WPLQE080 WPLQE120 I P
14 40 80 3 1
19 53 105 4
24 67 130 5
25 65 135 7
18 50 120 8
15 38 95 10
44 130 210 9 2
44 120 260 12
44 110 230 15
44 120 260 16
44 120 260 20
40 110 230 25
44 120 260 32
40 110 230 40
18 50 120 64
44 110 260 60 3
44 120 260 80
44 120 260 100
44 110 230 120
44 120 260 160
40 110 230 200
44 120 260 256
40
110 230 320
18 50 120 512

Output shaft loads

WPLQE060 WPLQE080 WPLQE120
Radial force for 20000 h  N 900 2050 2950
Axial force for 20000 h N 1000  2500    2500
Radial force for 30000 h  N 700 1700 2400
Axial force for 30000 h N 800 2000 2100
Tilting moment for 20000 h  Nm 37 101 232
Tilting moment for 30000 h   Nm 29 84 188


Geometry

WPLQE060 WPLQE080 WPLQE120   P
Shaft diameter output mm 16 20 25
Centering diameter output mm 60 80 110
Housing diameter  mm 60 80 115
Flange cross section output mm 70 90 115
Min. total lenght  mm 152 195.5 274.5 1
mm 164.5 213 302.5 2
mm 177 230.5 330 3
Shaft lenght output mm 32 40 55
