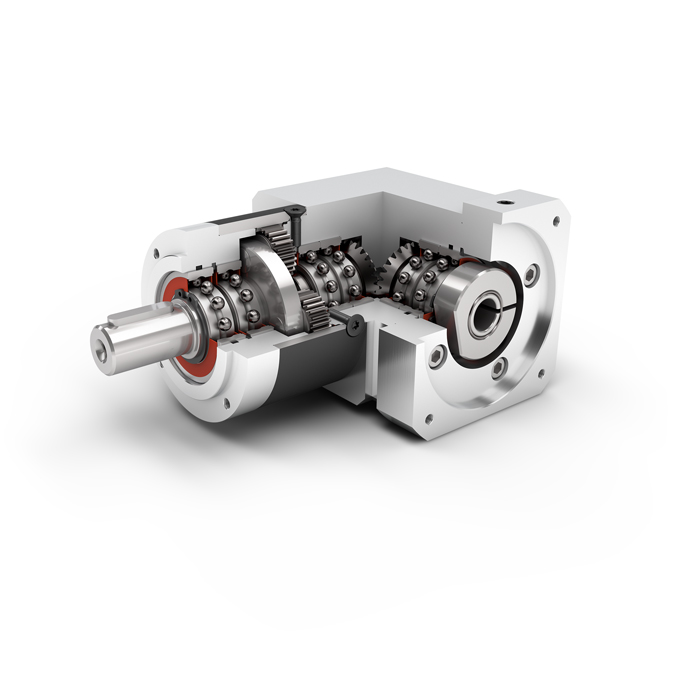

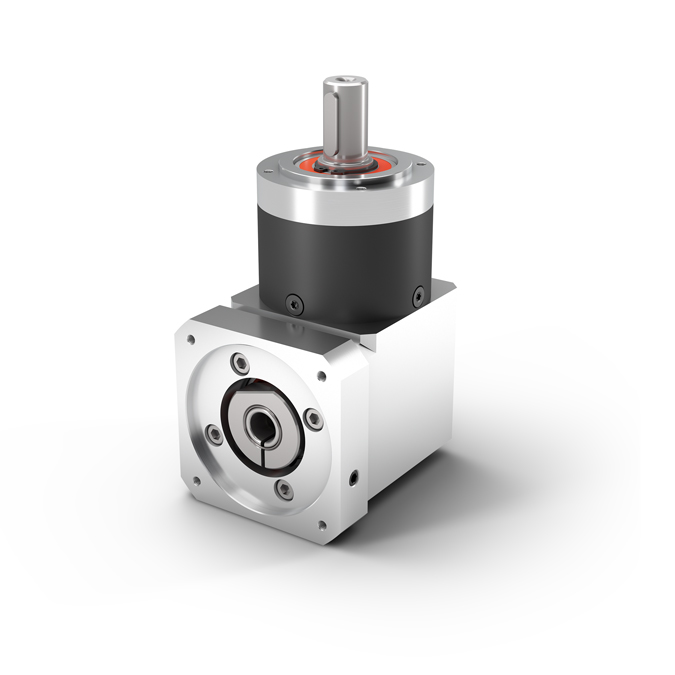

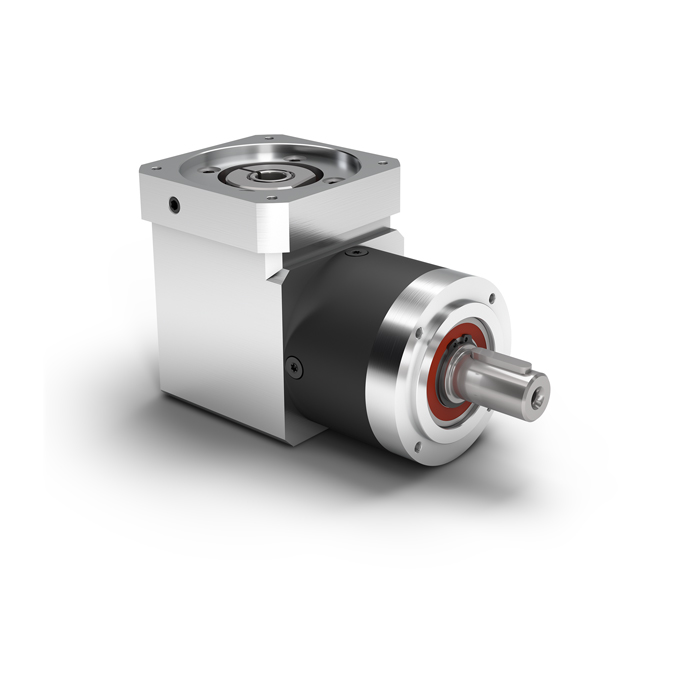

Right Angle Planetary Gearboxes with Output Shaft WPLE

The versatile right angle planetary gearbox with lower weight and appealing cost effectiveness.

The WPLE is a consistent continuation of the benefits offered by the Economy Line. With its compact, but powerful design, it is ideal for dynamic multiple axis systems. Our right angle gearbox features lifetime lubrication, is easy to install, all this at an unrivalled price-performance ratio.

DetailsParameterVideo

WPLE planetary gearbox is an economical right-angle gearbox in the NEUGART series. This gearbox continuously enlarges the advantages of an economical gearbox, and with its compact and powerful structure, it is an ideal choice for dynamic multi-axis systems. This gearbox is lubricated for life and maintenance-free, easy to operate during installation, and cost-effective.


Product description


The input flange of the WPLE planetary gearbox can be adapted to a special motor, the rotation is in the same direction, the output shaft style is diversified, the transmission range is wide, and the speed ratio is from i=3 to i=512. Compared with other similar products, WPLE reduces its dead weight by 25% because of its high torque. As a product in the right-angle planetary gearbox series, the WPLE multi-functional product is particularly prominent, so it has a high cost performance. The use of this maintenance-free right-angle planetary gearbox can make full use of the limited space, so the installation is flexible and suitable for a wide range of applications.




WPLE has a service life of up to 20,000 hours, is suitable for operating temperatures between -25-90°C, has three types of lubrication: low temperature, food, and standard, any safe position, and has a torsional stiffness of 22N. The weight range of the gearbox is 0.6- Choose between 13.4kg, the specific weight or other parameters can be changed according to different models. The maximum radial force of this gearbox is 2000N and the maximum axial force is 3800N.




WPLE is widely used in various industries. In lithium battery, machine tool, food, printing and other industries, NEUGART gearbox has various models and choices, and professional technology provides systematic selection solutions.



Product advantages


lightweight


compact


Simple and easy to install


Cost-effective



optional


Various types of output shafts


lubricating


Various types of drive flanges


Flexible connection of motors


Use


Food industry, pharmaceutical technology and pharmaceutical industry, agricultural product industry




Features


Extremely high dynamics in multi-axis systems


Unbeatable price/performance ratio


Great flexibility in installation


Lubricated for life and therefore maintenance-free


precise meshing




Gearbox characteristics WPLE040 WPLE060 WPLE080 WPLE120 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 9,12,15,16,20,25,32,40,64 2
Reduer 60,80,100,120,160,200,256,320,512 3
Service life h 20.000
Efficiency at full load % 95/94/88
Min operating temperature/max operating temperature -25/90
Protection class IP54
 Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
 Installation position Any
Standard backlash arcmin <21-<28 <16-<21 <13-<17 <11-<5
Torsional stiffness Nm/arcmin 0.5-1.0 1.5-2.8 4.0-10.4 9.9-22.0
Gearbox weight kg 0.6-0.8 1.6-2.0 3.7-4.7 9.6-13.4
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 68 70 73 75
Max bending moment based on the gearbox input flange Nm 2 5 10.5 26

Nominal Output torque

WPLE040 WPLE060 WPLE080 WPLE120 I P
4.5 14 40 80 3 1
6 19 53 105 4
7.5 24 67 130 5
8.5 25 65 135 7
6 18 50 120 8
5 15 38 95 10
16.5 44 130 210 9 2
20 44 120 260 12
18 44 110 230 15
20 44 120 260 16
20 44 120 260 20
18 40 110 230 25
20 44 120 260 32
18 40 110 230 40
7.5 18 50 120 64
20 44 110 260 60 3
20 44 120 260 80
20 44 120 260 100
18 44 110 230 120
20 44 120 260 160
18 40 110 230 200
20 44 120 260 256
18 40 110 230 320
7.5
18 50 120 512


Output shaft loads

WPLE040    WPLE060    WPLE080    WPLE120
Radial force for 20000 h N 200   400 750 1750
Axial force for 20000 h  N 200 500 1000 2500
Radial force for 30000 h N 160 340 650 1500
Axial force for 30000 h N 160 450 900 2100
Tilting moment for 20000 h  Nm 5 14 31 101
Tilting moment for 30000 h Nm 4 12 27 86






Geometry

WPLE040    WPLE060    WPLE080    WPLE120    P
Shaft diameter output mm 10 14 20 25
Centering diameter output mm 26 40 60 80
Housing diameter  mm 40 60 80 115
Min. total lenght mm 110 147 184 249.5 1
mm 123 159.5 201.5 277 2
mm 135.5 172 219 304.5 3
Shaft lenght output  mm 26 35 40 55
