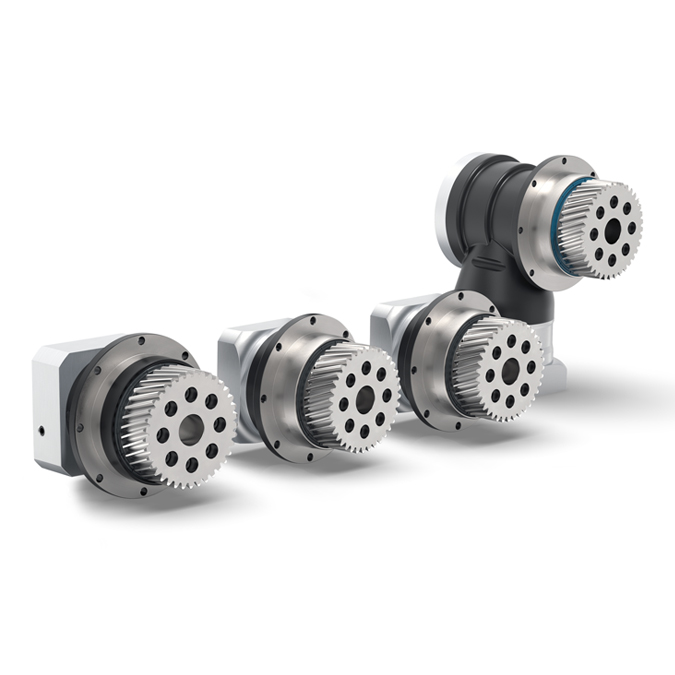

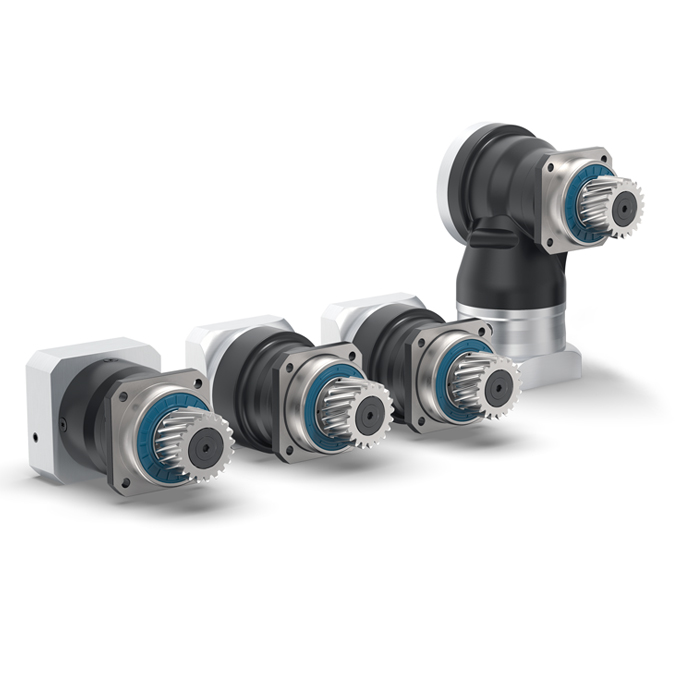

Planetary gearboxes with mounted pinion

A gearbox/pinion combination developed from a single source is the guarantee of ideal technical coordination for your rack and pinion drive.

The integrated gearbox/pinion combination provides the best technical coordination for rack and pinion drives. Numerous solution options provide high dynamics and high load-bearing capacities at the same time because of the precision gearing.


DetailsParameterVideo



Rapid availability

CAD data for the gearboxes with mounted pinion is available within a very short time by email. Use the Tec Data Finder.



Quick installation

The pinions are mounted to the gearbox for quick installation in the application.



Outstanding dynamics

The gearboxes with pinions can withstand feed force of up to 30,000 N and achieve a maximum feed speed of 650 m/min.



Pinions with helical and straight teeth

Suitable pinions are available for any gearbox size.



Good load-bearing capacity

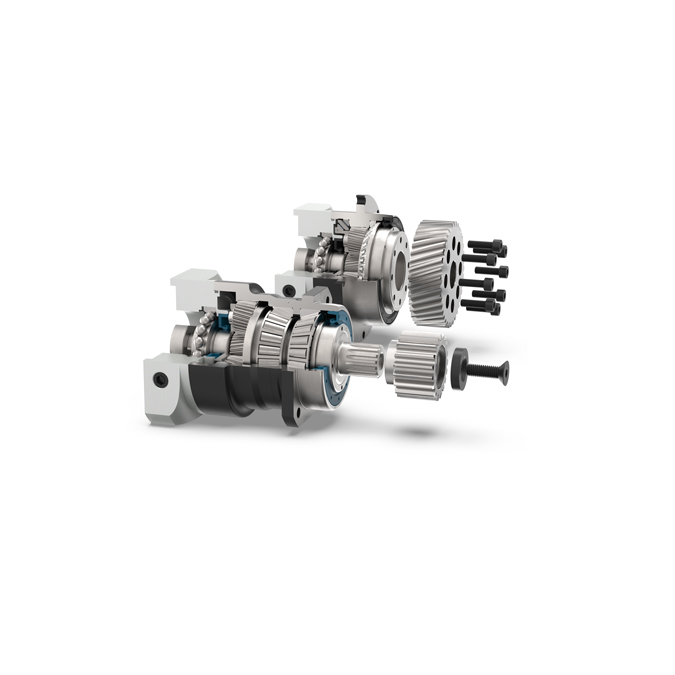

The gearboxes have powerful tapered or inclined roller bearings in the output shaft bearing. These are extremely resilient, meaning that in spite of the radial and axial forces that occur, dynamic movement of even heavy weights is possible.



Numerous combination options

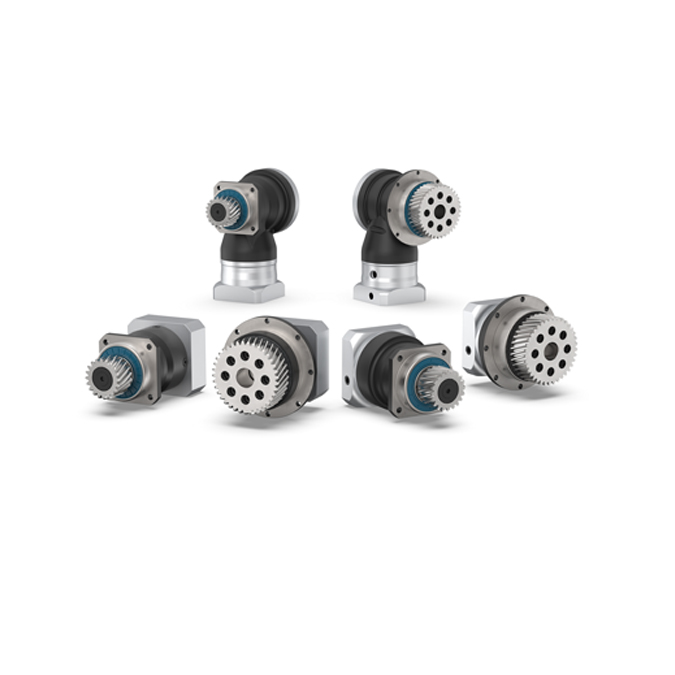

Two pinions and eight gearboxes. The numerous pinion/planetary gearbox type combination options ensure that the ideal solution is provided for different applications.




Planetary gearboxes with mounted pinion

Optimum technical coordination between the pinion and the gearbox is guaranteed by the inline and right-angle planetary gearboxes which have been specially developed for such rack and pinion applications by Neugart, in combination with pinions which have been manufactured in-house.


factured in-house.


PM1 Pinion

Helical gear

Pinion type Modulus Number of teeth Suitable for gearbox
PK1
2 15 PSN070 PLN070 WPLN070 PLHE060
PK1 2 16 PSN070 PLN070 WPLN070 PLHE060
PK1 2 18 PSN070 PLN070 WPLN070 PLHE060
PK1 2 18 PSN090 PLN090 WPLN090 PLHE080
PK1 2 20 PSN090 PLN090 WPLN090 PLHE080
PK1 2 22 PSN090 PLN090 WPLN090 PLHE080
PK1 2 23 PSN115 PLN115 WPLN115 PLHE120
PK1 2 25 PSN115 PLN115 WPLN115 PLHE120
PK1 2 27 PSN115 PLN115 WPLN115 PLHE120
PK1 3 20 PSN115 PLN115 WPLN115 PLHE120
PK1 3 20 PSN142 PLN142 WPLN142
PK1 3 22 PSN142 PLN142 WPLN142
PK1 3 24 PSN142 PLN142 WPLN142
PK1 4 20 PSN190 PLN190
Spur gear
Pinion type Modulus Number of teeth Suitable for gearbox
PK1 2 16 PSN070 PLN070 WPLN070 PLHE060
PK1 2 19 PSN090 PLN090 WPLN090 PLHE080
PK1 3 17 PSN115 PLN115 WPLN115 PLHE120
PK1 3 22 PSN142 PLN142 WPLN142
PK1 4 19 PSN142 PLN142 WPLN142
PK1 4 22 PSN190 PLN190
PK1 5 19 PSN190 PLN190


PM1 Pinion
Helical gear
Pinion type Modulus Number of teeth Lncluding adapter flange Suitable for gearbox
PM1 2 26 - PSFN064 PLFN064 WPSFN064 PFHE064
PM1 2 27 - PSFN064 PLFN064 WPSFN064 PFHE064
PM1 2 26 064 -> 090 PSFN090 PLFN090 WPSFN090 PFHE080
PM1 2 27 064 -> 090 PSFN090 PLFN090 WPSFN090 PFHE080
PM1 2 35 064 -> 090 PSFN090 PLFN090 WPSFN090 PFHE080
PM1 2 37 - PSFN090 PLFN090 WPSFN090 PFHE080
PM1 2 26 064 -> 110 PSFN110 PLFN110 WPSFN110 PFHE110
PM1 2 27 064 -> 110 PSFN110 PLFN110 WPSFN110 PFHE110
PM1 2 35 064 -> 110 PSFN110 PLFN110 WPSFN110 PFHE110
PM1 2 40 - PSFN110 PLFN110 WPSFN110 PFHE110
PM1 2 45 - PSFN110 PLFN110 WPSFN110 PFHE110
PM1 2 37 090 -> 140 PSFN140 PLFN140 WPSFN140
PM1 3 31 090 -> 140 PSFN140 PLFN140 WPSFN140
PM1 3 35 - PSFN140 PLFN140 WPSFN140
PM1 3 40 - PSFN140 PLFN140 WPSFN140
PM1 4 30 - PSFN140 PLFN140 WPSFN140
PM1 3 35 140 -> 200 PSFN200 PLFN200
PM1 3 40 140 -> 200 PSFN200 PLFN200
PM1 4 30 140 -> 200 PSFN200 PLFN200
