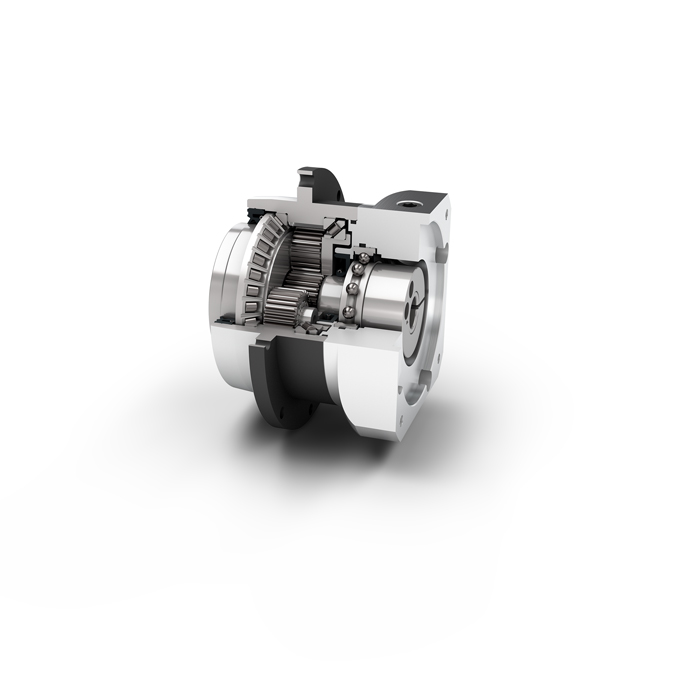

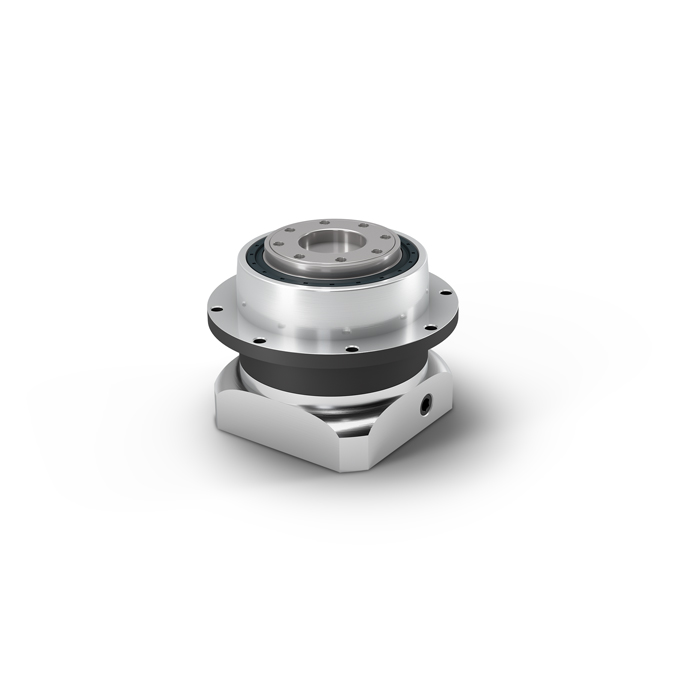

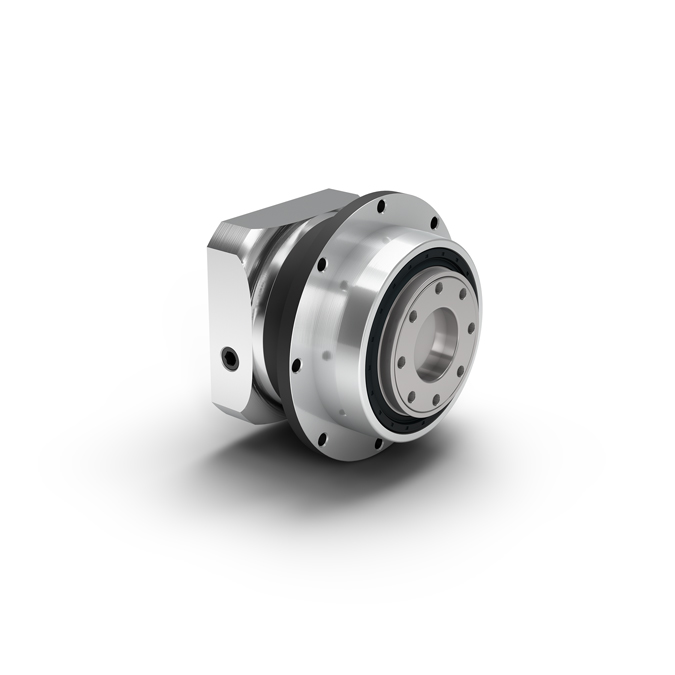

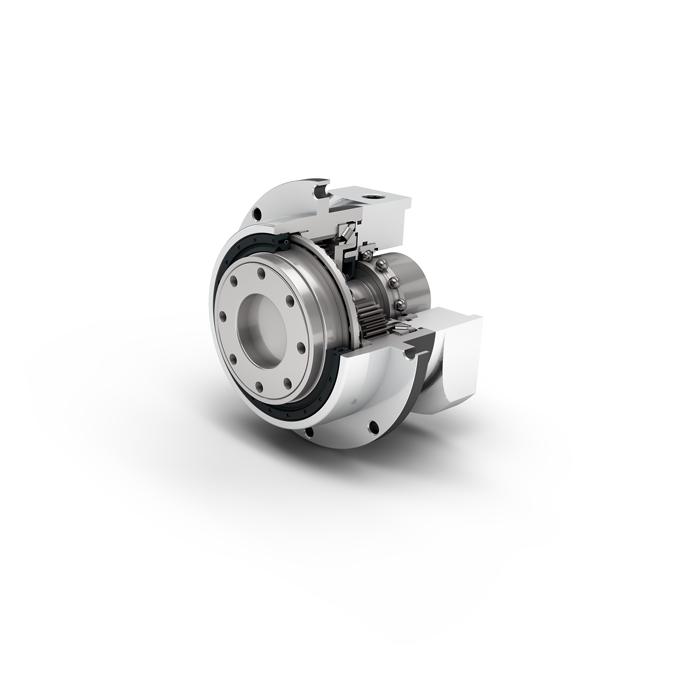

Planetary Gearboxes with Output Flange PLFN

The precision planetary gearbox for maximum loads and the highest performance – fast and easy to install.

Our PLFN features a standardized flange interface for ease of installation. The straight-teeth precision planetary gearbox has been designed for the highest performance and torque. Its high tilting moment delivers the best performance even under the highest radial and axial forces.

DetailsParameter

PLFN planetary gearbox is a high-load planetary gearbox, and high performance, standardized flange output interface makes the installation of the gearbox more convenient. This spur gear planetary gearbox is suitable for use in applications that require high performance and torque. This gearbox has a high tilting moment, that is, high axial and radial forces, and also has excellent performance.


Product description


PLFN planetary gearbox is a straight-tooth flange output type planetary gearbox. The high-precision reduction gear has a standardized interface, and the installation of the drive components is very simple and safe. The optional positioning pin hole can provide additional protection for the safety of the gearbox. This gear unit has a high load capacity and because of the high tilting moment, the PLFN is robust and able to withstand high radial and axial forces, a technology for some high standard applications. With high torque, equipped with spur gears, it is suitable for high-efficiency applications, and because of the intelligent design, the torque of this gearbox is higher than that of ordinary gearboxs. The return clearance of this gearbox is small, 1-5 arc minutes, and can be customized to less than 1 arc minute. This gearbox can be installed in any position, the input flange can be adapted to a special motor, and the optimized moment of inertia locking system. Rated torque 27-1800Nm, radial force 2150-33000Nm, axial force 4300-15000Nm. With round extra-large output flange, ISO 9409 standard flange output shaft, planetary gearbox with pinion can be selected. The use of this gearbox is specified in 20000h, the working temperature range is about -25-90 °C, and there are three types of lubrication: food grade, low temperature, and standard.


Product advantages


Standardized flange interface

Spur gears for high torque

high load capacity

fully sealed

Small and exquisite

Can be installed anywhere


Optional


return clearance

Various types of output shafts

Lubricate

Optimized tensioning system

Various types of drive flanges

installed pinion


Use


Machine tools, food industry, laser cutting machines, trusses




Features


High load, high performance, easy installation, high torque



Gearbox characteristics PLFN064 PLFN064 PLFN064 PLFN064 PLFN064 P
Reduer  4, 5, 7, 8,10 1
Reduer 16,20,25,32,40,50,64,100 2
Service life h
20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 97/96
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <3-<5
Reduced backlash arcmin <2 <1 <1 <1 <1
Torsional stiffness Nm/arcmin 7.6-14.8 18.5-40.5 58.0-92.0 156.0-264.0 330.0-656.0
Gearbox weight kg 1.4-1.9 2.9-3.5 5.0-6.3 12.9-15.6 37.0-45.9
Standard surface  Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 60 62 65 70 74
Max bending moment based on the gearbox input flange Nm 18 18/38 38/80 80/180 180/300



Nominal Output torque

PLFN064 PLFN090 PLFN110 PLFN140 PLFN200 I P
60
140 300 600 1300 4 1
65 140 260 750 1600 5
45 90 180 530 1300 7
40 80 150 450 1000 8
27 60 125 305 630 10
77 150 300 1000 1800 16 2
77 150 300 1000 1800 20
65 140 260 900 1800 25
77 150 300 600 1800 32
65 140 260 750 1800 40
65 130 260 620 1525 50
40 80 150 450 1000 64
27 60 125 305 630 100


Output shaft loads

PLFN064 PLFN090 PLFN110 PLFN140 PLFN200
Radial force for 20000 h  2150 3950 4900 12000 33000
Axial force for 20000 h 4300 8200 9500 8500 15000
Radial force for 30000 h 1900 3500 4350 11000 29500
Axial force for 30000 h 3800 7200 8400 7500 13500
Tilting moment for 20000 h 132 326 475 1219 4957
Tilting moment for 30000 h 117 289 422 1117 4431

几何尺寸

PLFN064 PLFN090 PLFN110 PLFN140 PLFN200 P
Pitch circle diameter output shaft 31.5 50 63 80 125
Centering diameter output flange 64 90 110 140 200
Flange diameter output 86 118 145 179 247
Min. total lenght 71 89 108 157 212.5 1
99.5 111 130 187.5 264 2
Output  flange length 19.5 30 29 38 50
