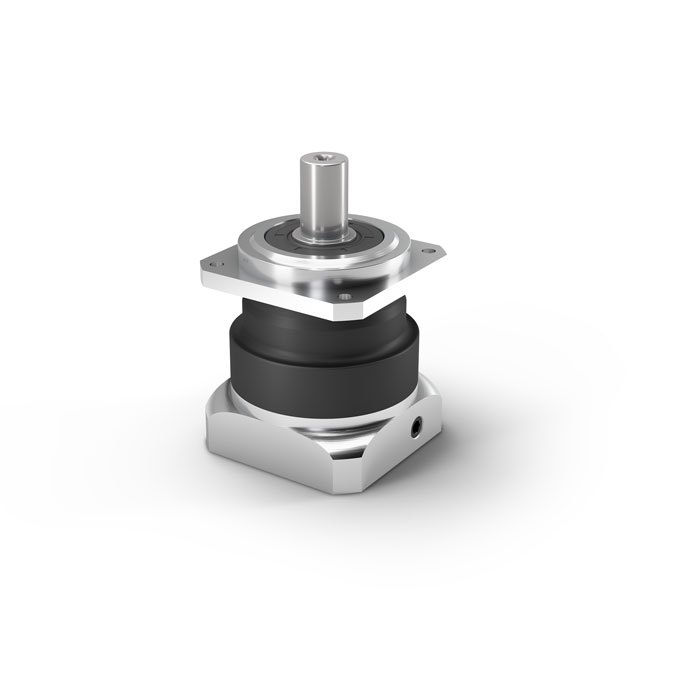

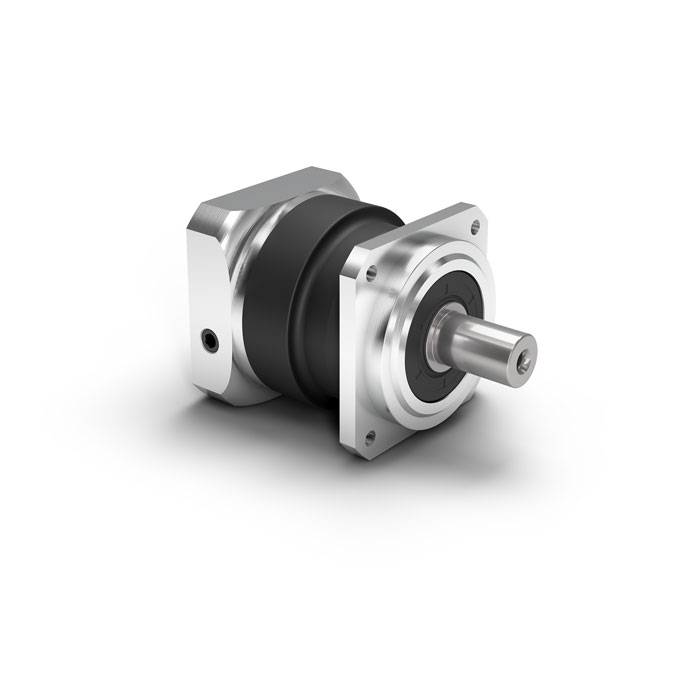

Planetary Gearboxes with Output Shaft PSBN

The high-performance precision planetary gearbox with helical teeth for a particularly quiet drive.

Our PSBN is the ideal combination of precision planetary gearbox and efficient bearing technology. It has been developed specifically for delivering the maximum performance at high speeds. Its helical teeth provide homogeneous synchronism and quiet running noise.

DetailsParameterVideo

PSBN planetary gearbox is a high-performance precision planetary gearbox, equipped with high-precision helical teeth, quiet and noiseless during operation. PSBN is a combination of precision gearbox and high-efficiency bearing. It is designed to achieve excellent performance while ensuring high speed. With the help of high-precision helical teeth, it runs stably and is quieter than ordinary gearboxs.


Product description

The difference between PSBN planetary gearboxes and other models of the NEUGART series is that the new helical teeth of PSBN can achieve optimal uniform synchronous operation. Vibration reduction results in improved workpiece surface quality and printed image quality on the equipment. Thanks to the low friction-loss bearing design and optimized lubrication function at high rotational speeds, the PSBN operates very reliably and generates low heat, even in demanding production cycles. Our self-developed helical teeth can save costs to a certain extent. After using PSBN, there is no need to add additional noise reduction measures to the machine, which increases the value of the entire system.

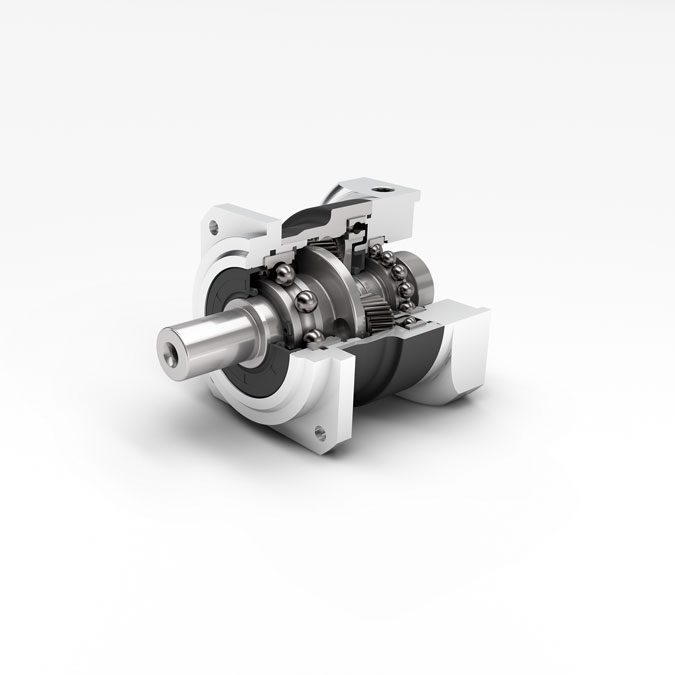

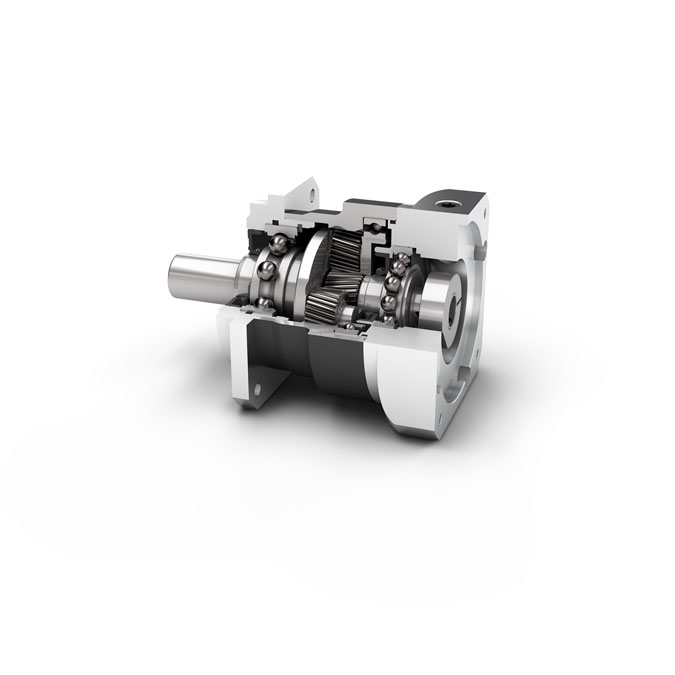

This PSBN has small return clearance, high precision, and low operating noise. It can be installed at any position. The input flange can be adapted to many types of motors, the rotation direction is the same direction, the output shaft types are diverse, and the service can be customized. Optimized moment of inertia locking system. The helical gear planetary carrier adopts cage structure, low friction deep groove ball bearing. There are four types of structures: PSBN70, PSBN90, PSBN115, and PSBN142 to choose from. The rated torque is 28-470Nm, the radial force is 1000-5800N, the axial force is 1500-9400N, and the return clearance is 1-5arcmin. From this, we can see the PSBN model Suitable for precision workpiece production.


The service life of PSBN gearbox is 20,000 hours, the temperature of the working environment can be as low as -25℃, and the high working temperature can reach 90℃. There are three types of lubrication: standard lubrication, low temperature softening and food grade lubrication. The return clearance can be optimized to be less than 0.01mm, and the torsional stiffness is between 4.1-71Nm, which can be selected. The weight of the gearbox can be selected between 1.4-15.8kg. The radial force of PSBN gearbox can reach 9500N, and the axial force can reach 9600N. 16 speed ratios of the 2-stage planetary carrier can be selected, and the specific gearbox model can be selected according to different application industries. The parameters vary according to different models.


Product advantages

Heat release is still very low at high speed


Inclined gears bring quality improvement


runs very quietly


completely sealed


Can be installed anywhere


Lubricated for life and therefore maintenance-free




Optional

return clearance

Various types of output shafts

Lubricate

Optimized tensioning system


Use

Packaging equipment, pharmaceutical technology and pharmaceutical industry, printing industry




Features

Low noise operation, high precision helical gear, stable operation



Gearbox characteristics PSBN070 PSBN090 PSBN115 PSBN142 P
Reduer 3, 4, 5, 7, 8, 10 1
Reduer 12,15,16,20,25,35,40,50,70,100 2
Service life h
20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 98/96
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <3-<5
Reduced backlash arcmin <2
<1 <1 <1
Torsional stiffness Nm/arcmin 4.1-5.7 9.3-13.4 22.5-35.0 57.5-76.0
Gearbox weight kg 1.4-2.1 2.8-3.5 5.4-6.9 13.4-15.8
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 57 58 63 66
Max bending moment based on the gearbox input flange Nm 18 18/38 38/80 80/180



Nominal Output torque

PSBN070 PSBN090 PSBN115 PSBN142 I P
29 54 135 380 3 1
39 80 180 470 4
40 80 175 405 5
37 78 175 355 7
39 75 155 350 8
28 59 140 305 10
29 54 135 380 12 2
29 54 135 380 15
39 80 180 450 16
39 80 180
450 20
40 80 175 405 25
40 80 175 405 35
39 80 180 470 40
40 80 175 405 50
37 78 175 355 70
28 59 140 305 100


Output shaft loads

PSBN070 PSBN090  PSBN115    PSBN142
Radial force for 20000 h N 1000 1900 2300    4200-5800
Axial force for 20000 h N 1500  3000  4400       9400
Radial force for 30000 h N  850   1700 2000   3700-5100
Axial force for 30000 h N 1300    2500   3700  7700
Tilting moment for 20000 h Nm 68    154  226   565-794
Tilting moment for 30000 h Nm  58  138  197

495-697



Geometry

PSBN070 PSBN090 PSBN115 PSBN142 P
Pitch circle diameter output 70  100 130  165
Centering diameter output 50  80  110  130
Shaft diameter output 16 22 32

 40

Min. total lenght 116.5 140.5   182.5    247.5 1
145 162.5 204.5 278.5  2
Shaft lenght output 37  48  65   97
