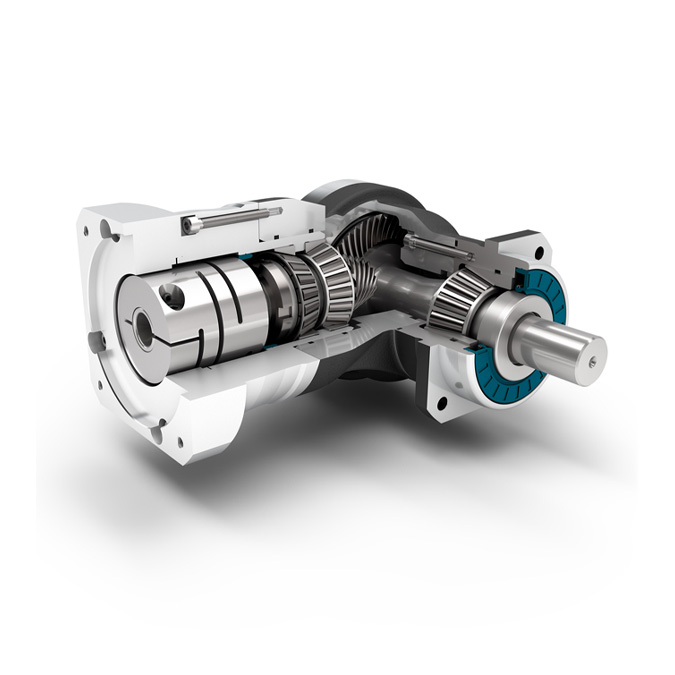

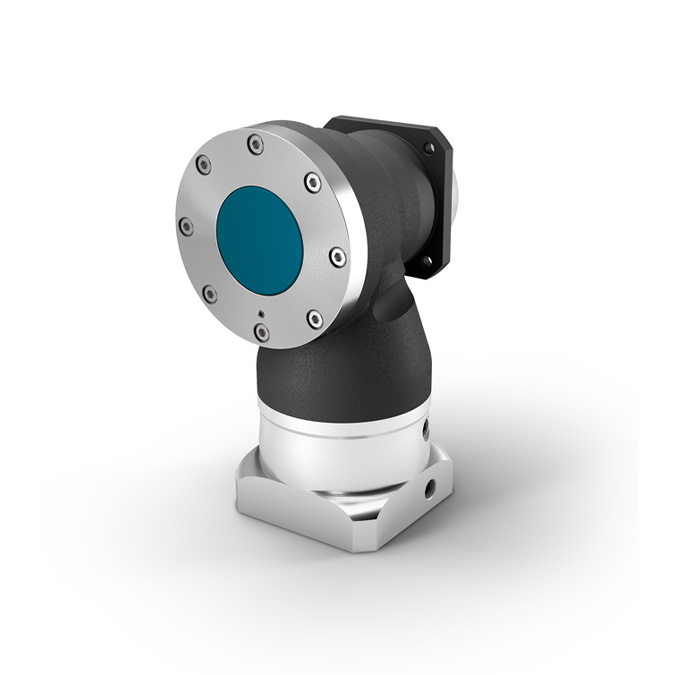

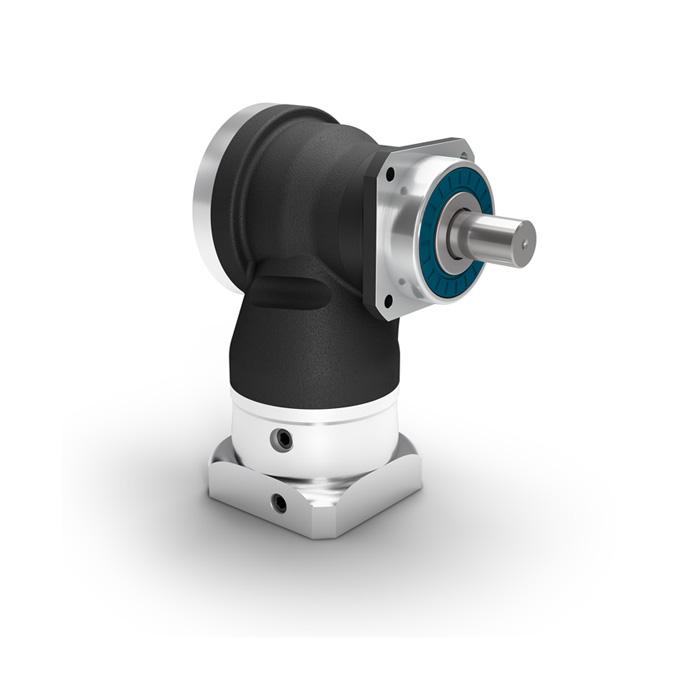

Right Angle Planetary Gearboxes with Output Shaft WPLN

The versatile right angle gearbox with spiral teeth for a quiet drive.

Thanks to its spiral teeth, our WPLN achieves the optimal synchronism for the best surface qualities. By minimizing vibrations, it runs uniformly and quietly. The precision right angle planetary gearbox features lifetime lubrication and can be mounted virtually anywhere.

DetailsParameterVideo

WPLN right-angle gearboxes are equipped with hypoid, so they operate very quietly. Thanks to its hypoid gears, the synchronous running performance of the WPLN is optimized and the surface quality of the workpiece workpieces applied can reach a high level. With minimal vibration, the WPLN operates stably and quietly. This high-precision right-angle gearbox is lubricated for life and maintenance-free, and can be installed in any position.


Product description


The WPLN right angle gearbox is highly flexible when installed. This hypoid gear planetary gearbox, which has been lubricated for life, can play a good role in the case of a small operating space. The WPLN can be installed in any position, thus creating a more more free space. Very quiet operation, high-quality hypoid gears make the WPLN operate with low noise and no additional noise reduction measures are required on the machine, thereby increasing the overall value of the system. Excellent manufacturing results, because equipped with hypoid gears, the WPLN operates very stably and with low vibration amplitude, so that the workpiece processing of the application equipment can achieve excellent surface and printing quality. The input flange of this gearbox can be adapted to a special motor, the direction of rotation is reversed, the output shaft can be selected in a variety of ways, and the optimized moment of inertia locking system. The square output flange is adopted, the radial shaft seal, the return clearance can be selected, the rated torque is 22-800Nm, the radial force is 3200-12500N, the axial force is 4300-15000N, the return clearance is 3-5 arc minutes, and the service life is 20000h. The working temperature is -25-90℃. The specific model parameters are mainly based on the selection situation.



Product advantages


High flexibility during installation


runs very quietly


Excellent processing quality


High rigidity under high loads


completely sealed


Individually adjustable drive flange on the motor


Optional


Various types of output shafts


return clearance


Lubricate


Optimized tensioning system


Various types of drive flanges


installed pinion




Use


Packaging equipment, machine tool equipment, printing equipment, lithium battery industry




Features


Low noise, high precision, small size



Gearbox characteristics WPLN070 WPLN090 WPLN115 WPLN142 P
Reduer 4, 5, 7, 8, 10 1
Reduer 16,20,25,28,32,35,40,50,64,100 2
Service life h
20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 95/94
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <5
Reduced backlash arcmin <3
Torsional stiffness Nm/arcmin 1.8-3.6 4.6-8.6 8.6-16.9 24.5-34.0
Gearbox weight kg 3.4-4.5 5.4-5.9 10.4-11.3 24.626.5
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 66 67 68 70
Max bending moment based on the gearbox input flange Nm 12 12/25.5 25.5/53 53/120



Nominal Output torque

WPLN070 WPLN090 WPLN115 WPLN142 I P
45
90 160 320 4 1
42 75 140 280 5
28 51 91 189 7
27 50 90 180 8
22 40 75 160 10
77 150 300 640 16 2
77 150 300 800 20
65 140 260 700 25
60 112 204 364 28
77 108 200 360 32
65 140 255 455 35
65 135 250 450 40
65 110 200 375 50
40 80 150 450 64
27 60 125 305 100


Output shaft loads

WPLN070 WPLN090 WPLN115 WPLN142
Radial force for 20000 h 3200 5200 6000 12500
3200 5500 6000 12500
Axial force for 20000 h 4300
5900 7000 14500
4400 6400 8000 15000
Radial force for 30000 h 3200 5200 6000 10900
3200 4800 5400 11400
Axial force for 30000 h 3700 5200 6100 12000
3900 5700 7000 13200
Tilting moment for 20000 h 322 624 1010 2225
322 660 1010 2225
Tilting moment for 30000 h 322 624 1010 1940
322 576 909 2029


Geometry

WPLN070 WPLN090 WPLN115 WPLN142 P
Shaft diameter output  16
22 32 40
Centering diameter output 60 70 90 130

Flange cross section output

70
80 110 142


Min. total lenght

137.5 165 218 273 1
185 207 248.5 342.5 2
Shaft lenght output 48 56 88 110
