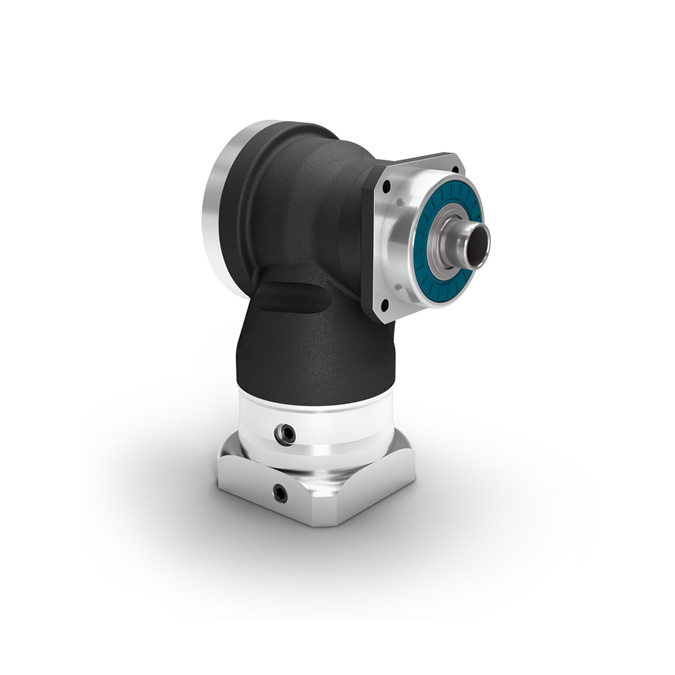

Right Angle Gearbox with Hollow Shaft WGN

The spiral-toothed right angle gearbox with hollow shaft – low noise levels and force-fit installation.

Our WGN is a hollow-shaft right angle gearbox that operates with particularly low noise levels. At the same time, the spiral teeth increase the quality of your workpiece surfaces. It can be connected directly to the application via a shrink disc, a simple and reliable solution that offers you new design possibilities.

DetailsParameterVideo

WGN hollow shaft gearbox output hypoid gear gearbox 1 - low noise, installed in the way of tensioning force transmission


The WGN is an extremely quiet hollow shaft output hypoid gear gearbox. At the same time, the hypoid gear can improve the quality of the workpiece surface to which the equipment is applied. Using a shrink sleeve, it can be connected directly to the application - simple, safe and offers a new type of construction design.


Product description


WGN hollow shaft gearbox runs very quietly. Due to the use of hyperboloid gears, WGN runs very quietly and has a small vibration amplitude, and no other noise reduction measures are required on the machine. The synchronous operation of the WGN gearbox has also been optimized, and the workpiece standard and quality of the equipment used have also reached a high level. WGN's hollow shafts can be connected directly to machine shafts, a process that is safe, convenient and space-saving.


With our corner gear units with hollow shaft, you can drive the machine shaft directly via the clamping set. Here we rely on reliable, high-precision helical gears to transmit torque and speed at right angles. The machine shaft is inserted directly into the hollow shaft of the gear unit and connected to this by means of a clamping set. This allows for a very simple friction fit connection - no additional auxiliary structures such as intermediate flanges and couplings are required. Neugart's angle gear units with hollow shaft can be screwed directly to the machine via a through hole in the output flange. As a further option, hollow shafts at both ends are also available for angle gearboxes. In this way, the lines that have been routed from the machine shaft can also pass through the gearbox. So you can increase your flexibility and at the same time guarantee your versatility in mechanical design with a servo gearbox with hollow shaft. Planetary gearboxes are combined with angular gearboxes with hollow shafts to achieve higher transmission ratios. Due to their right-angle construction, the corner gearbox with hollow shaft is also an option for optimal design of limited spaces with space-saving drive elements. For added flexibility, the angular planetary gearbox with hollow shaft is lubricated for life and can be installed and used in all spatial positions due to its design. Therefore, you can flexibly design the construction space regardless of the positioning of the drive unit. The drive flange of the angular planetary gearbox can be individually adapted to the motor. The compact unit of angle gear unit with hollow shaft and servo motor increases flexibility.



Product advantages


runs very quietly


excellent surface quality


Convenience, safety, force transmission


High flexibility during installation


completely sealed


Cables can be routed through hollow shafts




Optional


Various types of output shafts


Lubricate


Optimized tensioning system


Various types of drive flanges


Use


Packaging equipment, pharmaceutical technology and the pharmaceutical industry




Features


hollow shaft, safety



Gearbox characteristics WGN070 WGN090 WGN115 WGN142
Reduer 4, 5, 7, 8, 10
Service life h
20.000
Service life at T2N×0.88 h 30.000
Efficiency at full load % 95
Min operating temperature/max operating temperature -25/90
Protection class IP65
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <5
Torsional stiffness Nm/arcmin 1.6-3.3 4.2-5.7 9.2-12.4 23.5-31.5
 Gearbox weight kg 3.2-3.3 5.1-5.6 10.9 23.3-23.8
 Standard surface  Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 66 67 68 70
Max bending moment based on the gearbox input flange Nm 12 25.5 53 120

Nominal Output torque

WGN070 WGN090 WGN115 WGN142 I
45 70 140 320 4
42 70 140 280 5
28 51 91 189 7
27 50 90 180 8
22 40 75 160 10

Output shaft loads

WGN070 WGN090 WGN115 WGN142
Radial force for 20000 h  2700 4000 6500 10000
Axial force for 20000 h 4300 5900 7000
14500
Radial force for 30000 h   2700 4000 6500 10000
Axial force for 30000 h 3700 5200 6100 12000
Tilting moment for 20000 h 252 442 970 1505
Tilting moment for 30000 h 252 442 970 1505

Geometry

WGN070 WGN090 WGN115 WGN142
Shaft diameter output  18
24 36 50
Centering diameter output  60 70 90 130
Hollow shaft diameter 15 20 30 40
Flange cross section output 70 80 110 142
Min. total lenght 122.5 143.5 178 217
Shaft lenght output 33 34.5 48 54
