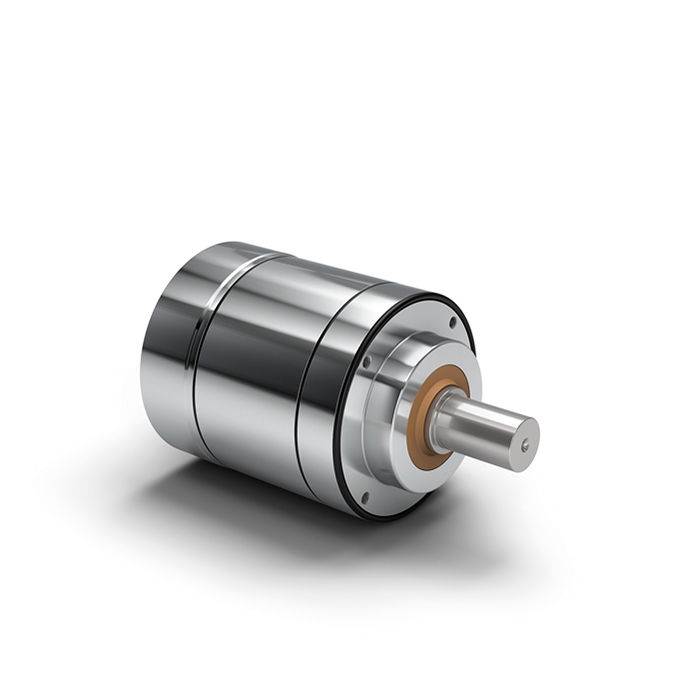

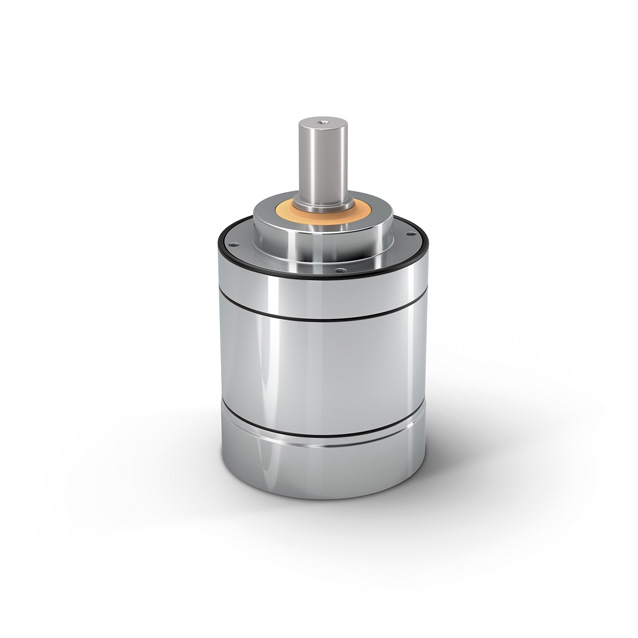

Hygienic Design Planetary Gearbox HLAE

The unique planetary gearbox with certified hygienic design – ideal for reliable cleaning processes

Our HLAE is unique: It is the world’s first planetary gearbox with certified hygienic design – flexible without a radial screw, powerful, and yet ideal for fast and easy cleaning. It has been developed specifically for challenging applications such as in the pharmaceutical, cosmetics, and food industries.

DetailsParameterVideo

For particularly flexible installations

Uniquely, completely round

Fast and easy to clean

Certified safety

For any mounting position

Lifetime lubrication for maintenance-free operation




Gearbox characteristics HLAE070 HLAE090 HLAE110 P
Reduer  3, 4, 5, 7, 8, 10 1
Reduer 9, 12, 15, 16, 20, 25, 32, 40, 64,100 2
Service life h
30.000
Efficiency at full load % 98/97
Min operating temperature/max operating temperature -25/90
Protection class IP69K
Food grade lubrication Grease (lifetime lubrication)
Installation position Any
Standard backlash arcmin <10-<12
<7-<9 <7-<9
 Torsional stiffness Nm/arcmin 2.2-3.2 6.6-9.0 13.5-20.5
Gearbox weight kg 2.1-2.5 3.8-4.5 7.3-9.0
Standard surface Housing: Steel - heat-treated and post-oxidized(black)
Running noise dB/(A) 58 60 65
Max bending moment based on the gearbox input flange Nm 8 16 40

Output shaft loads
Radial force for 20000h/30000h
N 400-450 600-900 1050-1450
Axial force for 20000h/30000h N 500-550 1000-1500 2000-2500
Tilting moment for 20000h Nm 22 49 109


Output torques HLAE070 HLAE090 HLAE110 P
Nominal output torque Nm
15-33 38-87 95-171 1
15-33 38-87 95-171 2
Max. output torque Nm 24-53 61-140 152-274 1
24-53 61-140 152-274 2
Emergency stop torque
Nm
30-66 76-174 190-342 1
30-66 76-174 190-342 2


Geometry HLAE070 HLAE090 HLAE110 P
Shaft diameter output mm 14 20 25
Centering diameter mm 40 58 65
Housing diameter mm 69 88 109
Min. total length mm
123.5 146.0 191.0 1
135.5 166.0 219.0 2
Shaft length output mm 41.7 50 66.5
